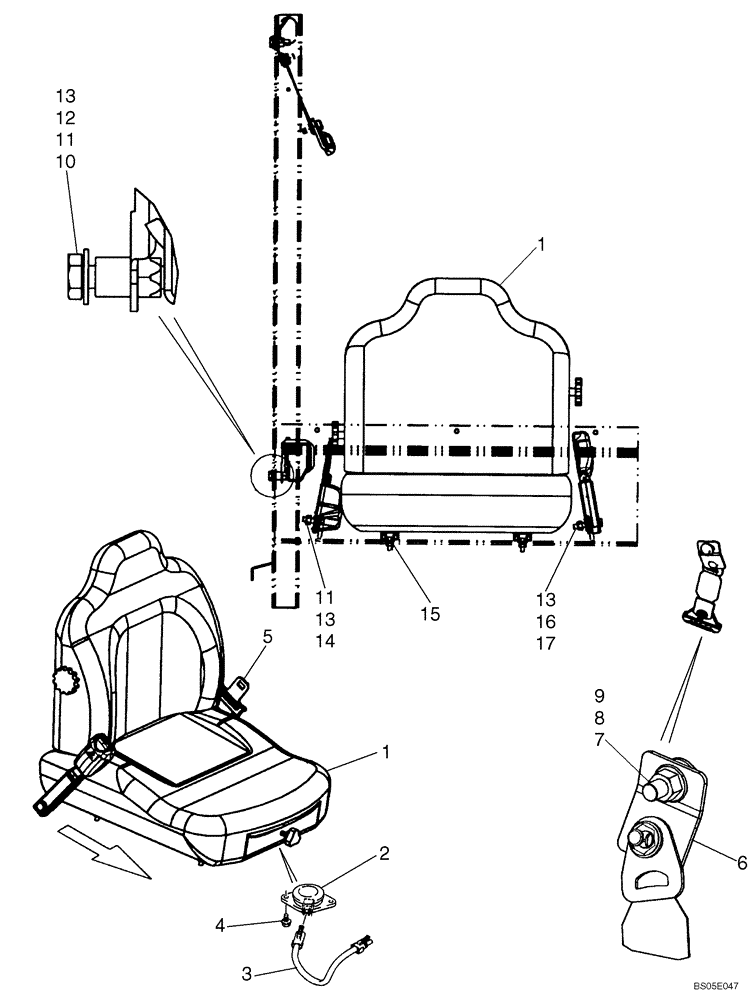

Запчасти Case IH 410 (09-30) - SEAT, MOUNTING - SUSPENSION (09) - CHASSIS

1

400681A1

SEAT

Suspension; See Figures 09-31 - 09-33

1шт.

2

242306A1

SWITCH

Operator Presence

1шт.

3

302137A2

HARNESS

Seat; Two Connector

1шт.

4

NSS

NOT SOLD SEPARAT

Bolt

4шт.

5

87457899

SAFETY BELT ,50.80 mm W

1шт.

6

87461782

BRACKET

Shoulder Belt

1шт.

7

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

8

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

1шт.

9

43436

FLANGE NUT,M12

1шт.

10

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

If Used; Used With Spacer Ref 12 87303203

1шт.

10

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

If Used; Used with Spacer, Ref 12 87047451

1шт.

11

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

M10 x 24 x 2

2шт.

12

87303203

SPACER,X-Pipe, 10.74mm ID x 17.15mm OD x 15.01 L

3/8 in x Pipe .591 in; If Used; Used With Bolt Ref 10 120112

1шт.

12

87047451

SPACER,11.13mm ID x 19.05mm OD x 25mm L

If Used; Used With Bolt Ref 10 325829

1шт.

13

86512554

NUT,M10 x 1.5, Cl 10

3шт.

14

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

15

43362

NUT,M8 x 1.25, Cl 10

4шт.

16

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

1шт.

17

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.
