Запчасти Case IH 410 (09-22B) - NOISE CONTROL, NORTH AMERICAN; IF USED (09) - CHASSIS

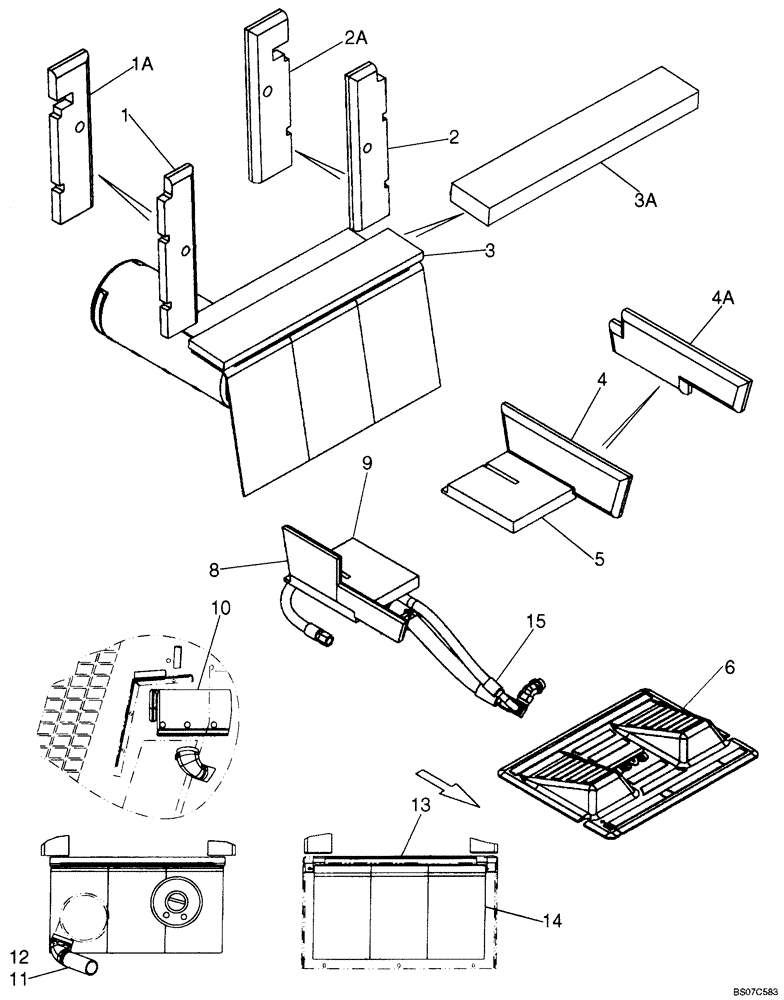

Схема запчастей Case IH 410 - (09-22B) - NOISE CONTROL, NORTH AMERICAN; IF USED (09) - CHASSIS
3
4
14
13
2
9
5
6
2a
8
1a
3a
10
4a
12
15
1
11

Артикул

Название

Примечание

Количество

1

402043A1

PAD

Rear Window Right; If Used

1шт.

1a

87592633

FOAM

Rear Window Right; If Used

1шт.

2

402040A1

PAD

Rear Window Left; If Used

1шт.

2a

87592630

FOAM

Rear Window Left; If Used

1шт.

3

402045A1

PAD

Rear Window Top; If Used

1шт.

3a

87618692

FOAM

Rear Window Top; If Used

1шт.

4

402041A1

PAD

Lower Left Hand Side Screen; If Used

1шт.

4a

87619305

FOAM

Lower Left Hand Side Screen; If Used

1шт.

5

429673A1

INSULATING PANEL

Left Hand Seat Plate

1шт.

6

87461561

FLOOR MAT

1шт.

7

434733A1

PAD

Right Hand Lower Side Screen

1шт.

8

402042A1

PAD

Lower Right Hand Side Screen

1шт.

9

429672A1

INSULATING PANEL

Right Hand Seat Plate

1шт.

10

87356487

GUARD

Muffler Wrap; If Used

1шт.

10

87588085

FOAM

Muffler Wrap; Noise Reduction; Europe, If Used; Use 9 Twist Ties 87393399 To Secure

1шт.

10a

87393399

SPRING

Twist Ties; 9 in; Not Illustrated Separately

9шт.

11

87573940

HOSE

Engine Intake; Replaces 315522A1

1шт.

12

86633353

HOSE CLAMP,70mm - 92mm

3.50 in

1шт.

13

318165A1

INSULATOR

Sound Dampening, Upper

3шт.

14

318166A1

INSULATOR

Sound Dampening, Lower

1шт.

15

REF

INSTRUCTION

See Figure 06-07B

1шт.

Выбрано товаров: 21
