Запчасти Case IH 410 (02-04B) - AIR CLEANER - ENGINE (EUROPE) (02) - ENGINE

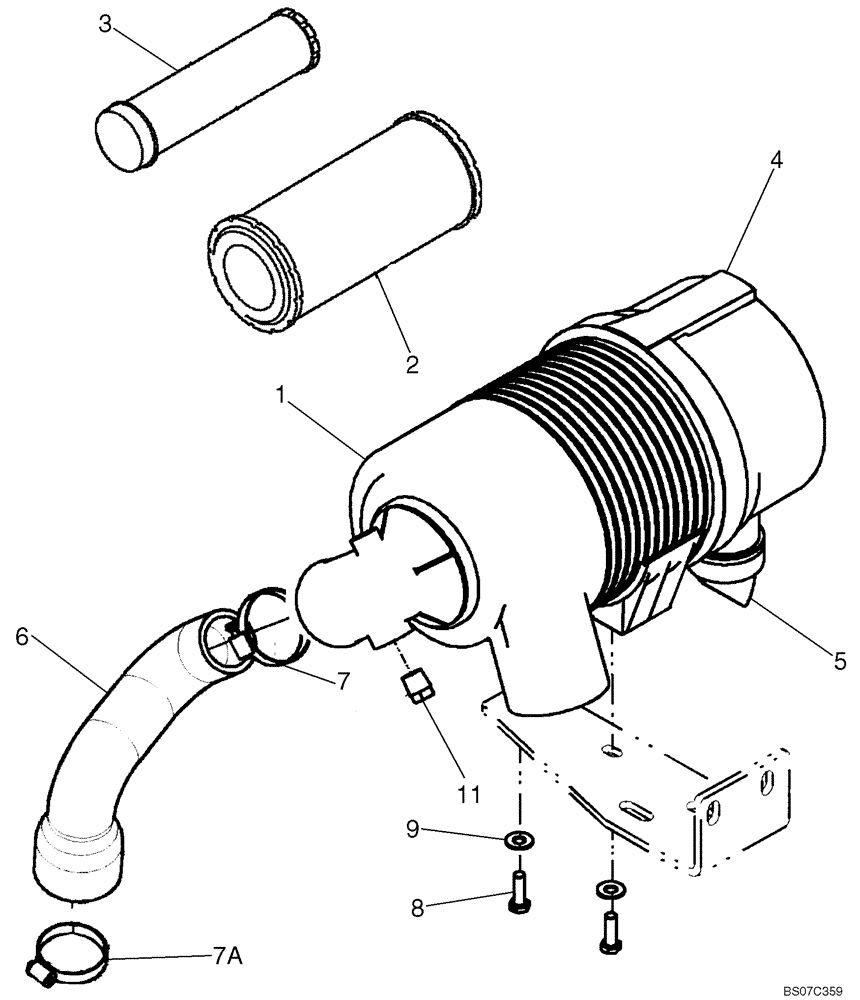

Схема запчастей Case IH 410 - (02-04B) - AIR CLEANER - ENGINE (EUROPE) (02) - ENGINE
3
4
7a
11
1
6
5
8
9
7
2

Артикул

Название

Примечание

Количество

87041485

CLEANER ASSY.

Incl. 1 - 5

1шт.

1

87041842

AIR CLEANER

Body

1шт.

2

222425A1

AIR FILTER

Primary

1шт.

3

222429A1

AIR FILTER

Secondary

1шт.

4

440831A1

FILTER COVER

Incl. 4A

1шт.

4a

86990981

LOCKING TAB

Not Illustrated Separately

1шт.

5

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

1шт.

6

87435415

INTAKE AIR HOSE,46.00 mm ID, 63.50 mm ID x 197.00 mm, SAE 20R4 D1

Air Cleaner Outlet

1шт.

7

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

1шт.

7a

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

1шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

9

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

11

353-203

PLUG,Sq Drive, 3/8"-18 NPT

1шт.

Выбрано товаров: 13
