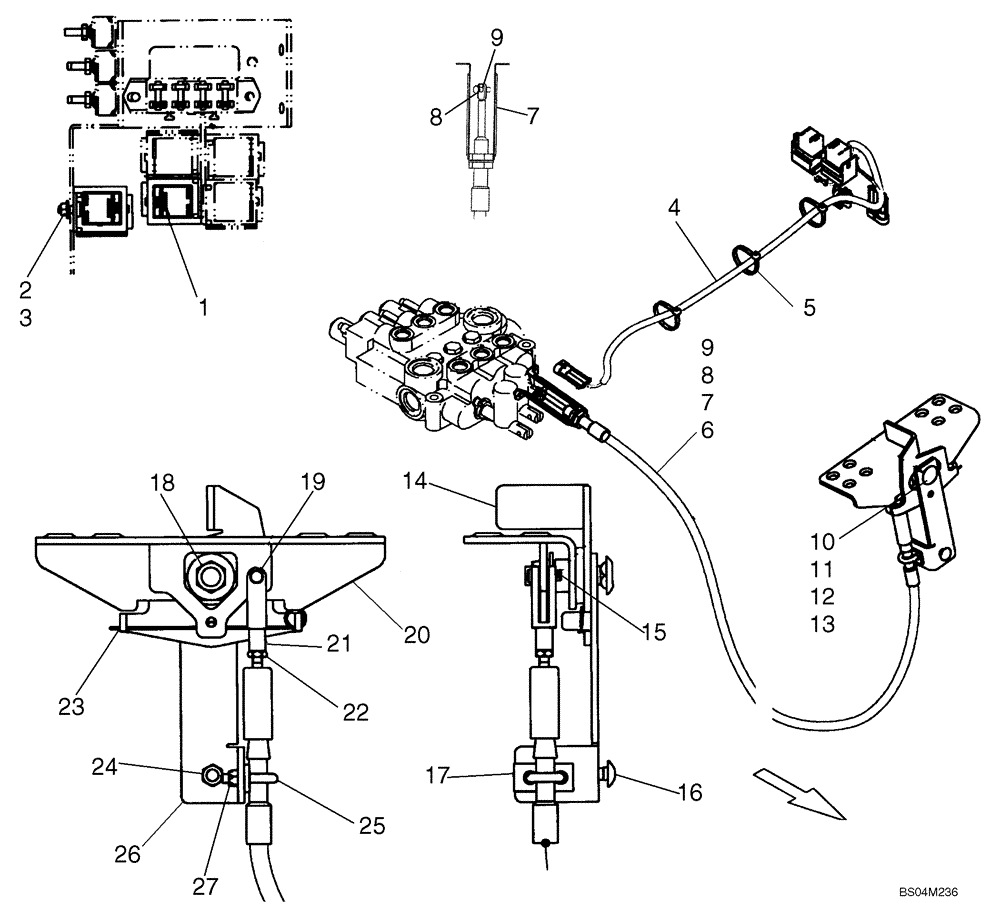

Запчасти Case IH 410 (09-15) - CONTROLS - AUXILIARY HYDRAULICS (09) - CHASSIS

1

87355337

RELAY,12V, 45A

45 Amp; MFG # Stamped On Case - 4RD 931 680-01; If Used

1шт.

1

87436836

RELAY,12V, 40 Amp

40 amp, 12 V, Heavy Duty; If Used

2шт.

2

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

If Used

1шт.

2

80043982

SCREW,Phillips Drive, Pan HD, M5 x 12mm, Cl 4.8

M5 x 10; If Used

1шт.

2

80043982

SCREW,Phillips Drive, Pan HD, M5 x 12mm, Cl 4.8

1шт.

3

87316503

NUT

If Used

1шт.

3

43416

KIT

M5, Flg Ser; If Used

1шт.

4

87439242

HARNESS

Auxiliary Hydraulic Interlock; Incl. Diode 774735

1шт.

774735

DIODE,6A

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP If Used

3шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Black

3шт.

6

87423856

CABLE ASSY.

Incl. 7 - 9

1шт.

7

87426583

BRACKET

1шт.

8

427-3071

CLEVIS PIN,3/16" x .719"

1шт.

9

280236

COTTER PIN,1/16" x 1/2"

1шт.

10

87609276

BOLT

Custom Shoulder Bolt, 12mm Shoulder X M10 X 1.5 Thd

1шт.

10

87033290

CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8

No Longer Used, Order 87609276

1шт.

11

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

1шт.

12

283839A1

SPACER

1шт.

13

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

1шт.

14

87446614

LEVER

Pedal Lock

1шт.

15

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

1шт.

16

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

17

H373779

LARGE PLATE

PLATE, LARGE

1шт.

18

86500689

NUT,M10 x 1.5, Cl 10

1шт.

18

412672

NUT,Hex, M12 x 1.75, Cl 10

No Longer Used, Order 86500689

1шт.

19

234726

CLEVIS PIN,6.29mm OD x 20mm L

1шт.

20

87423833

PEDAL ASSY.

If Used

1шт.

20

87741562

PEDAL

1шт.

21

86520436

ADJUSTABLE CLEVIS,1/4" - 28

1шт.

22

86976064

JAM NUT,Jam, 1/4"-28, G5

1шт.

23

302960A2

SPRING

Pedal Lock Lever

1шт.

24

9628098

NUT,M8 x 1.25, Cl 10

1шт.

25

87442439

ROD

M6

1шт.

26

87423854

BRACKET

1шт.

27

86512440

NUT,M6, Cl 10

2шт.
