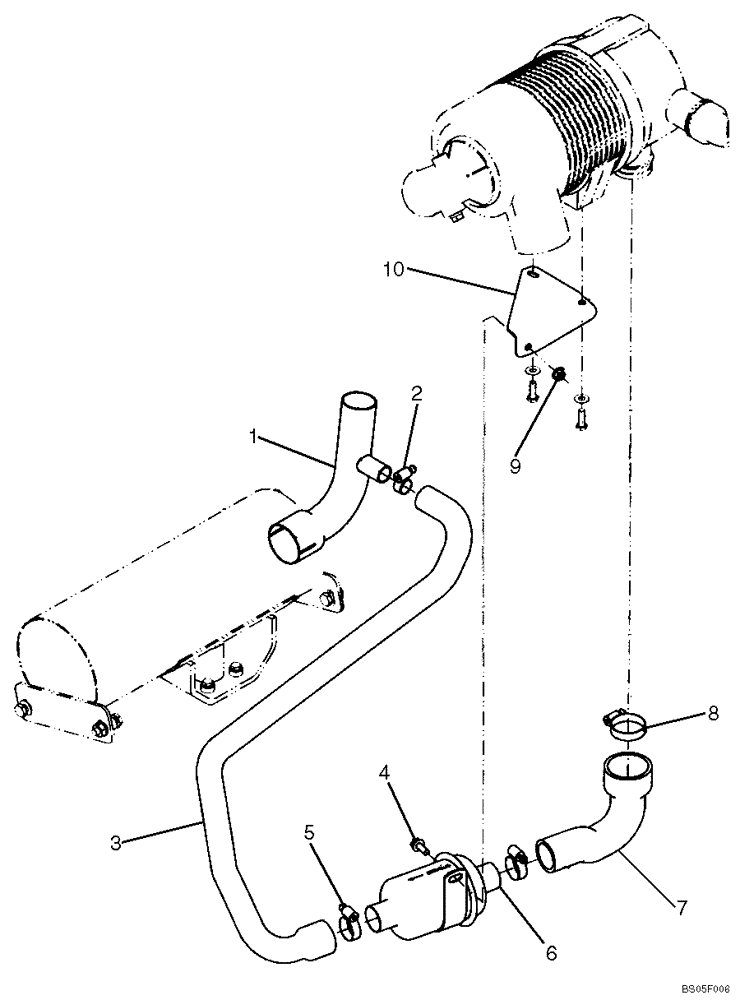

Запчасти Case IH 410 (02-03C) - EXHAUST SYSTEM, ASPIRATOR (02) - ENGINE

1

87052642

EXHAUST SYSTEM PIPE,47.60 - 50.80 mm OD

Exhaust

1шт.

2

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

3

87056169

HOSE,25.40 mm ID, 38.0 mm ID x 529.90 mm, SAE 20R4 CLASS D1

1шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

5

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

6

406089A2

VALVE

Aspirator Check

1шт.

7

87056123

HOSE,38.00 mm ID, 56.00 mm ID x 171.00 mm, SAE 20R4 Class D1

1шт.

8

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

9

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

10

87056125

ANGLE

1шт.
