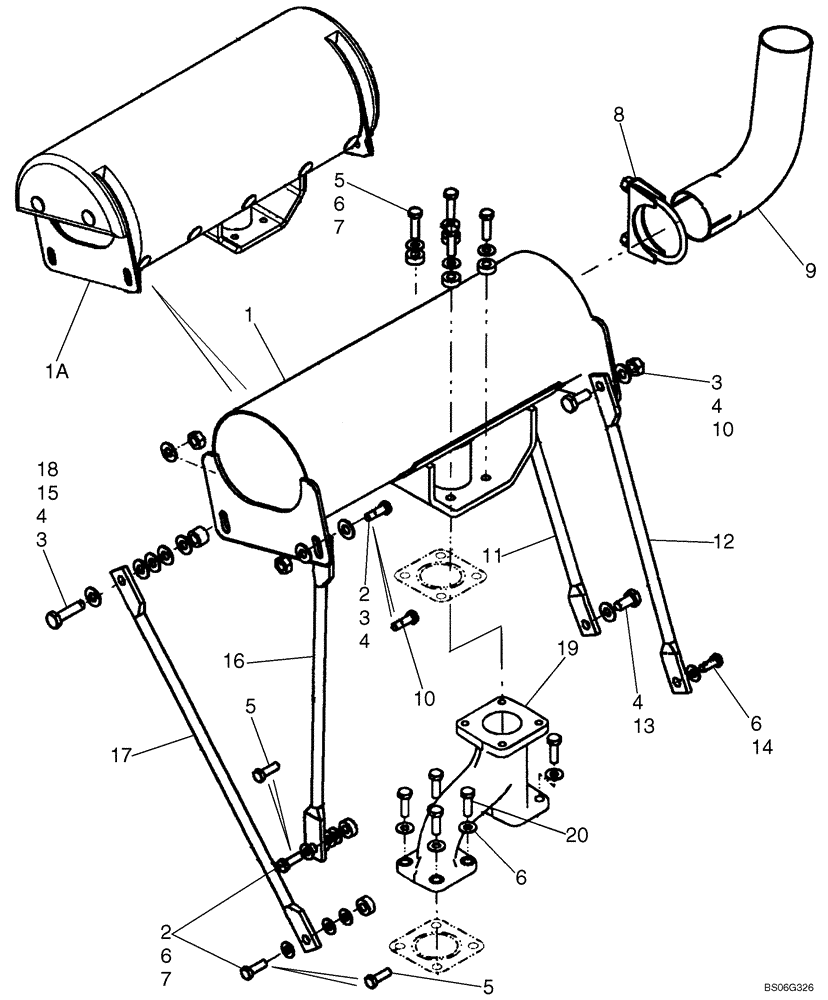

Запчасти Case IH 410 (02-03A) - EXHAUST SYSTEM, IF USED (SEE REF 16, 17) (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
87462107
MUFFLER
1шт.
1a
87356837
GUARD
Muffler And Wrap Assy; European Models, If Used; Incl. 87356487 Wrap, 87462107 Muffler; Not Illustated Separately
1шт.
87356487
GUARD
Muffler Wrap; Noise Reduction; Europe
1шт.
1a
87588085
FOAM
Muffler Wrap; Noise Reduction; Europe, If Used; Use 9 Twist Ties 87393399 To Secure
1шт.
1b
87393399
SPRING
Twist Ties; 9 in; Not Illustated Separately
9шт.
2
43127
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
No Longer Used
6шт.
3
100016
NUT,M10 x 1.5, Cl 8
4шт.
5
43127
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
If Used
6шт.
7
86633393
SPACER
11/32 ID X 3/4 OD X 5/16 Thk; If Used
6шт.
7
87606607
SPACER,8.73mm ID x 20.05mm OD x 7.9mm L
If Used
6шт.
8
87461995
CLAMP,68mm ID, Muffler
Muffler
1шт.
9
87045237
EXHAUST SYSTEM PIPE,57.20 mm OD x 146, 170 mm L
Exhaust; If Used
1шт.
9
87592051
EXHAUST SYSTEM PIPE,2.25" OD
Tube Exhaust; If Used
1шт.
11
87046588
ROD
Muffler Support
1шт.
12
87046587
ROD
Muffler Support
1шт.
13
43138
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
1шт.
15
87042897
SPACER
1шт.
16
87356846
MOUNTING ROD
Muffler Support; 393.3 mm; Center To Center of Holes; Replaces 8704658 (322.5 mm Center To Center of Holes), See Figure 02-03, Ref 8
1шт.
17
87356847
MOUNTING ROD
Muffler Support; 452 mm; Center To Center of Holes; Replaces 87046586 (388 mm Center To Center of Holes), See Figure 02-03, Ref 5
1шт.
18
120068
BOLT,Hex, M10 x 40mm, Cl 8.8
No Longer Used
1шт.
19
86614557
MANIFOLD
Exhaust
1шт.
20
43127
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
6шт.
Выбрано товаров: 29
