Запчасти Case IH 410 (02-02) - FAN MOUNTING (02) - ENGINE

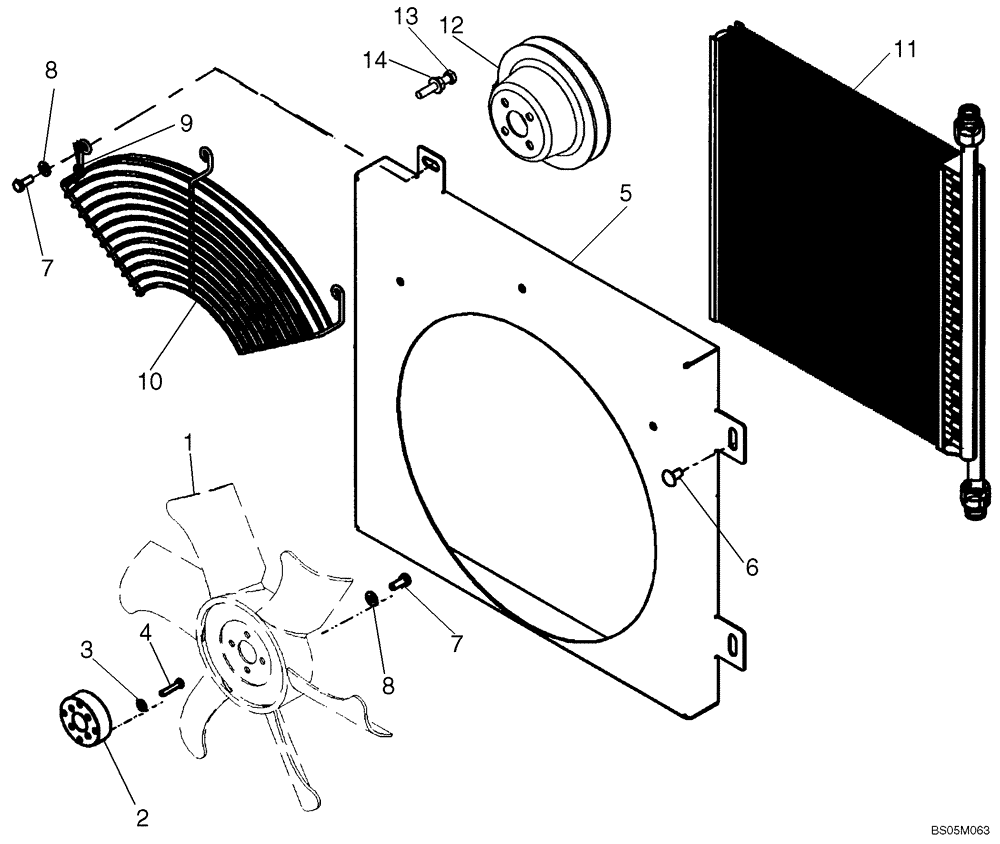

Схема запчастей Case IH 410 - (02-02) - FAN MOUNTING (02) - ENGINE
8
1
4
9
14
7
5
11
2
3
12
10
8
6
13
7

Артикул

Название

Примечание

Количество

1

SBA145306740

FAN

1шт.

2

9860094

SPACER

Fan

1шт.

3

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

4

80120101

BOLT

M6 x 30

4шт.

5

87052892

SHROUD

1шт.

6

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

4шт.

6

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

10

87018958

GUARD

Fan

1шт.

11

REF

INSTRUCTION

See Figure 06-01, Oil Cooler

1шт.

12

SBA145337030

PULLEY,115.04mm OD

European Models

1шт.

13

15212521

BOLT,Hex, M6 x 35mm, Cl 8.8, Full Thd

1шт.

13

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

Replaces Existing High Idle Screw And Jam Nut On Injection Pump; No Longer Used, Order 15212521

1шт.

14

86511444

FLANGE NUT,Hex, M6 x 1

1шт.

Выбрано товаров: 16
