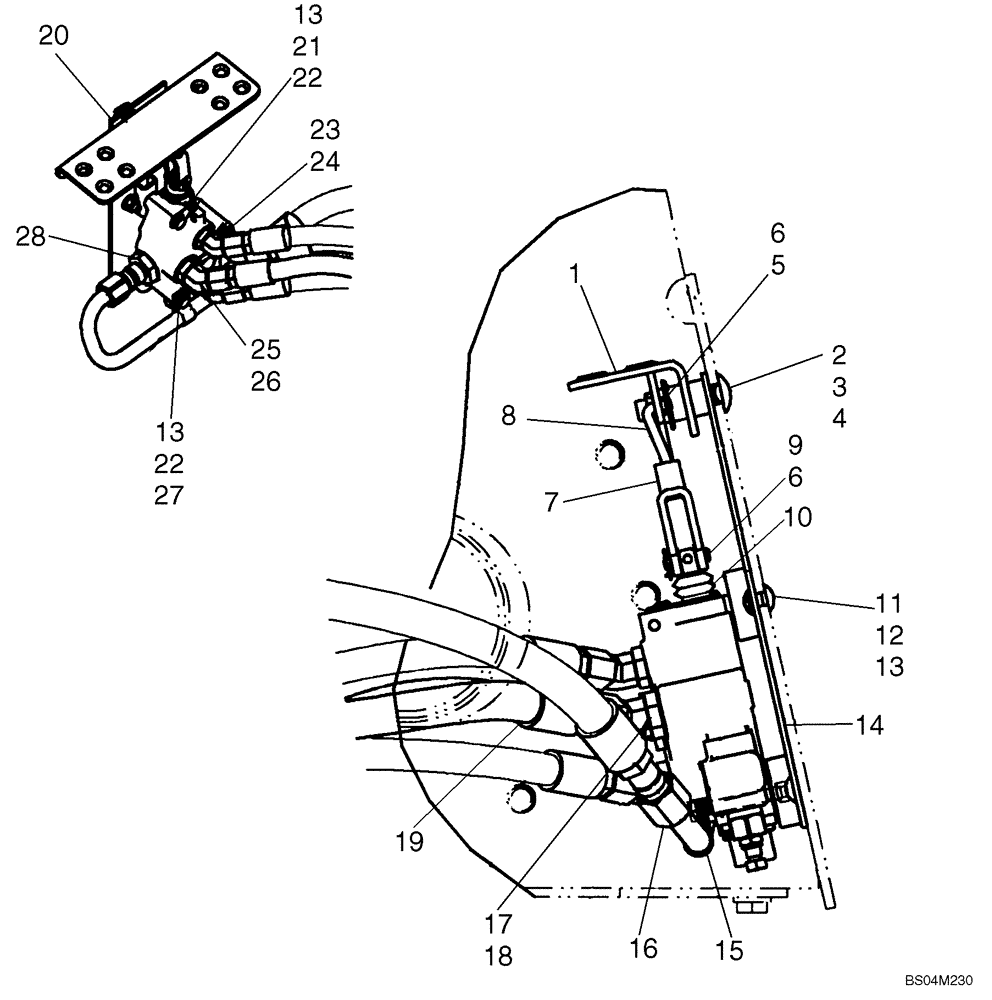

1
87423833
PEDAL ASSY.
If Used
1шт.
1
87741562
PEDAL
1шт.
2
87033290
CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8
1шт.
3
81541
WASHER,0.5" ID x 1.25" OD x 0.08" Thk
2шт.
4
412672
NUT,Hex, M12 x 1.75, Cl 10
1шт.
5
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
1шт.
6
D131983
COTTER PIN,1.04mm OD x 21.4mm L, Ring
1шт.
87444369
LINKAGE
Incl. 7, 8
1шт.
7
87444160
CLEVIS
1/4 in
1шт.
8
87444368
LINK
1шт.
9
H32961
CLEVIS COUPLING,7.94mm OD x 29.34mm L
1шт.
10
87017348
VALVE
Secondary Auxiliary Valve; See Figure 08-16
1шт.
11
308761
CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8
1шт.
12
9628098
NUT,M8 x 1.25, Cl 10
1шт.
13
86624185
WASHER,8.8mm ID x 17.5mm OD x 2mm Thk
3шт.
14
87447969
PLATE ASSY.
Valve Mounting Plate
1шт.
15
9706748
CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type
1шт.
16
87445489
HYD TUBE,15.88 mm OD
1шт.
17
330345
45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring
Incl.18
1шт.
18
167269
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
19
87445548
HOSE ASSY.
Inlet
1шт.
20
L14781
BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L
1шт.
21
43130
BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8
1шт.
22
229197A1
SQUARE NUT,M8 x 1.25, Cl 8
M8 x 1-1/4
2шт.
23
216797
45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring
Ref 24
2шт.
24
128825
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
25
9610689
ELBOW,45 Degree, 3/4"-16 x 7/8"-14, O-Ring
Incl. 26
1шт.
26
167269
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
27
16044321
BOLT,M8 x 1.25 x 55mm, Cl 8.8
3шт.
28
129878A1
FITTING
Power Beyond; Incl. 29 - 31
1шт.
29
9991976
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Not Illustrated
1шт.
30
A52424
BACK-UP RING
Not Illustrated
1шт.
31
167266
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Not Illustrated
1шт.
32
139618A1
DECAL
Aux Hyd Control; Belongs On Pedal; Not Illustrated
1шт.
