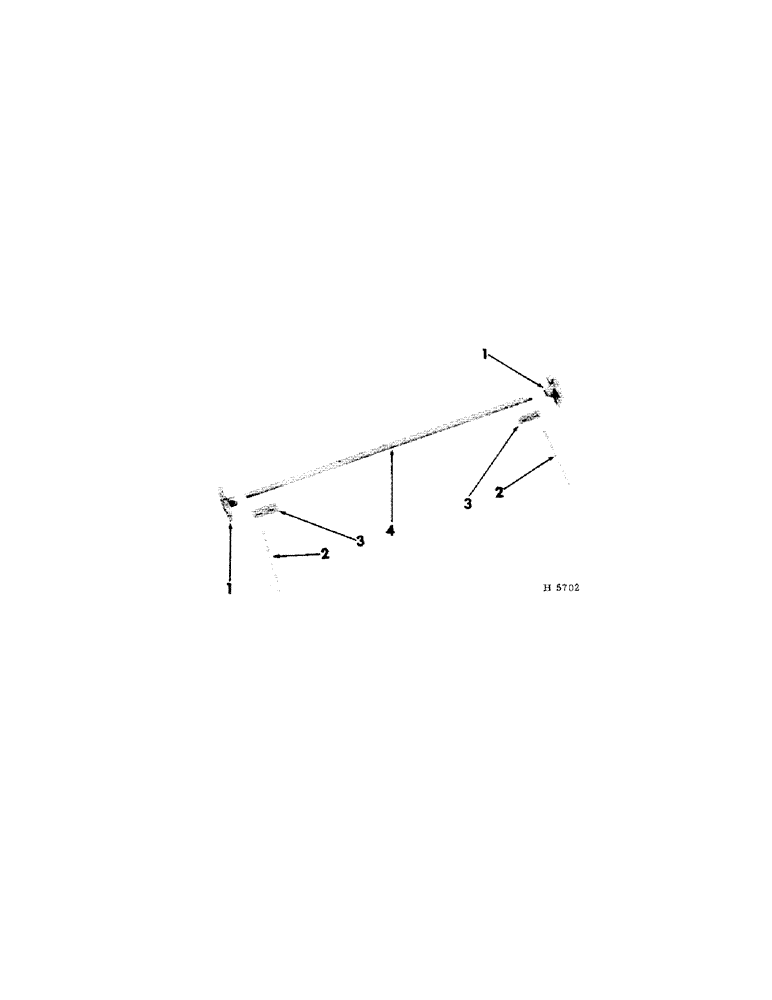

Запчасти Case IH 75 (A-05[A]) - FRONT APRON SHAFT

1

613067R1

SPROCKET, 5T apron shaft

2шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

LUB-FTG, 1/8" - 30 degree elbow

2шт.

2

619685R1

BOLT

apron chain tightener

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16" cd-pltd

4шт.

3

619568R1

PLATE, front apron shaft

2шт.

623075R1

BOLT W/NUT, 1/2 x 1-1/4" cd-pltd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

613074R1

SHAFT, front apron

1шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

2шт.

PO12898

WASHER

WASH, 29/32 x 1-1/2 x 11 ga

2шт.

615193R1

WASHER

WASH, 29/32 x 1-3/8 x 16 ga

1шт.
