(A-04) - FRONT ENDGATE

Запчасти Case IH 75 (A-04) - FRONT ENDGATE

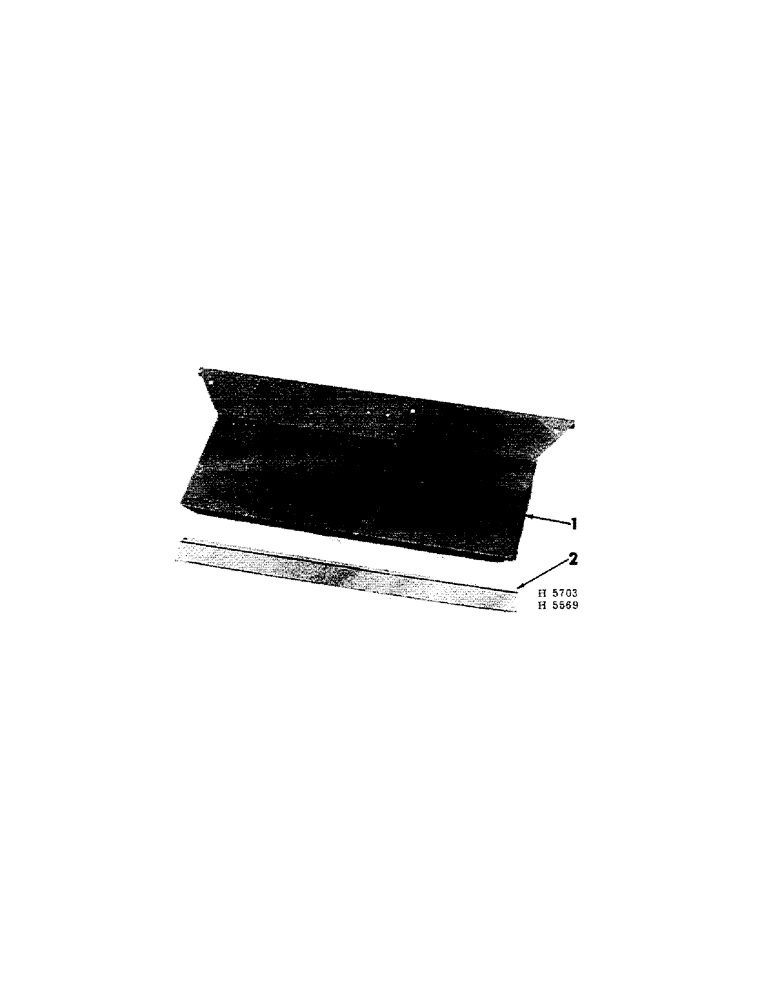

Схема запчастей Case IH 75 - (A-04) - FRONT ENDGATE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

612977R2

ENDGATE, front

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 3/8 x 3/4" cd-pltd crg

1шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

6шт.

19288R1

BOLT W/NUT, 3/8 x 1-1/4" cd-pltd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

2

613133R11

CANVAS, front endgate

1шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
