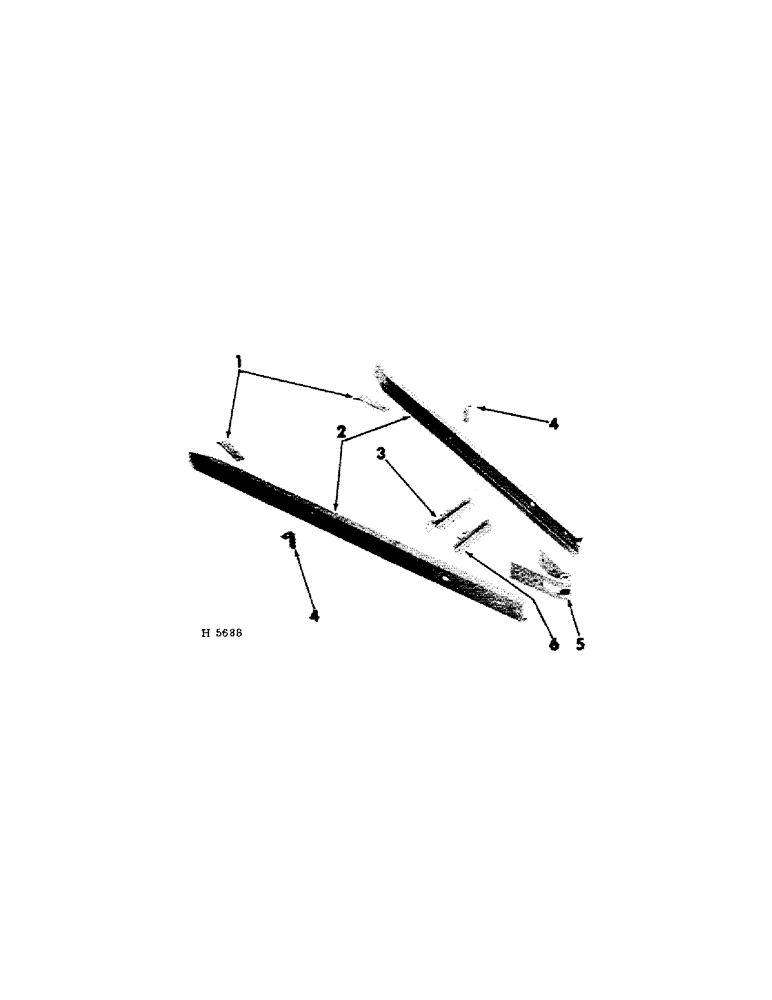

Запчасти Case IH 75 (A-04[B]) - HITCH

1

613002R1

STRAP, apron raising

2шт.

15557R1

PLOW BOLT,#3 Hd, 3/8" - 16 x 1 1/8", Gr 2

BOLT, PLOW, 3/8"-16 x 1 1/8", G2, Full Thd

2шт.

102635

NUT,3/8"-16, G5

4шт.

2

613004R1

CHANNEL, hitch LH

1шт.

2

613005R1

CHANNEL, hitch RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 3/8 x 3/4" cd-pltd crg

2шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

86837293

SHAFT

BOLT W/NUT, 1/2 NF x 1" cd-pltd type 2

4шт.

623075R1

BOLT W/NUT, 1/2 x 1-1/4 cd-pltd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

3

613006R11

BRACE, rope control hitch, Serial Range: (prior-1966)

1шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

612855R1

BRACKET, hitch channel

2шт.

19848R1

BOLT W/NUT, 5/8 x 1-3/8" cd-pltd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

613003R11

STRAP, hitch pivot

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

W/NUT, 1/2 x 1-1/2" cd-pltd type 2

4шт.

E23193

PIN, 3/4 x 4-11/16" std-hd dld

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

613291R91

BRACE, lever control hitch (regular 1966 & since)

1шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
