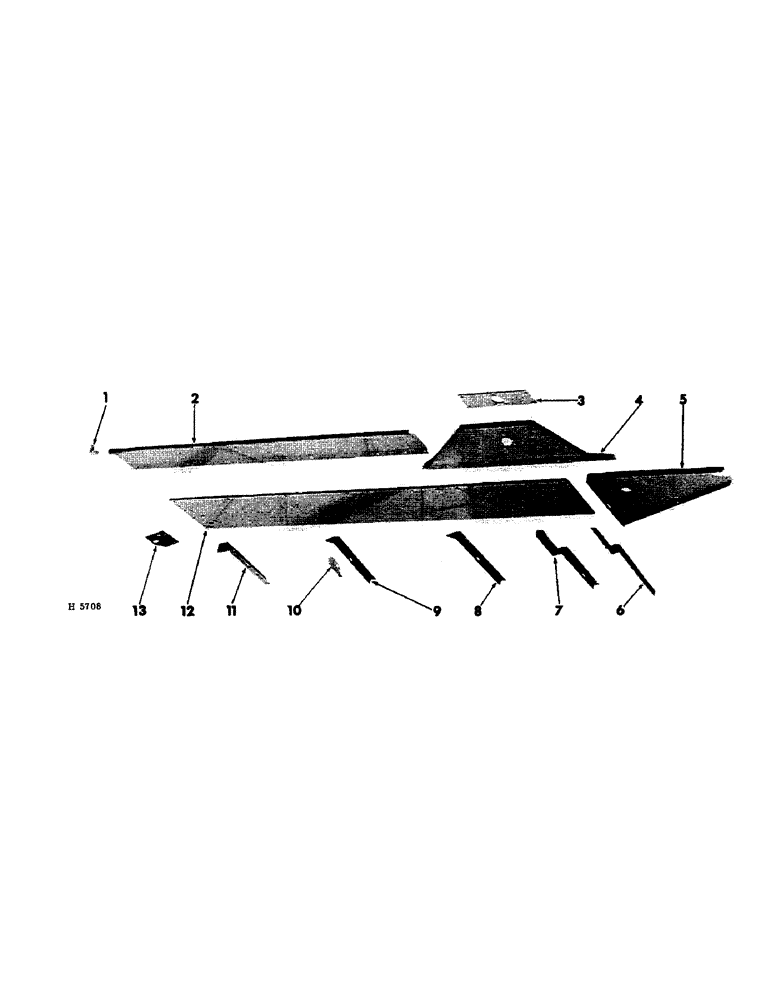

Запчасти Case IH 75 (A-03) - SPREADER BOX SIDES, LEFT SHOWN

1

612963R1

FILLER, front corner

2шт.

2

612972R2

ROLL, box top LH

1шт.

2

612973R1

ROLL, box top RH (not shown)

1шт.

14990R1

BOLT

W/NUT, 5/16 x 5/8" crg (RH)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

6шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 1", G2

3шт.

15014R1

BOLT,Sq Nk, 5/16" x 1 1/8"

W/NUT, 5/16 x 1-1/8" crg (2-LH) (3-RH)

1шт.

Q399

WASHER

WASH, 11/32 x 1 x 16 ga

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

18шт.

3

612975R1

PLATE, upper beater support outer

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg (4-LH; 3-RH)

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8 x 1-1/4" crg (RH)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

4

612980R11

SHEET, side top LH

1шт.

4

612981R11

SHEET, side top RH (not shown)

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut (5-LH; 4-RH) Short NK, 5/16"-18 x 3/4", G2

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 1", G2

2шт.

15014R1

BOLT,Sq Nk, 5/16" x 1 1/8"

W/NUT, 5/16 x 1-1/8" crg

8шт.

14995R1

BOLT

W/NUT, 3/8 x 3/4" crg

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (8-LH; 9-RH) 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Q398

WASHER

WASH, 11/32 x 7/8 ga

4шт.

Q399

WASHER

WASH, 11/32 x 1 x 16 ga

2шт.

5

612978R2

SHEET, side rear LH

1шт.

5

612979R2

SHEET, side rear RH (not shown)

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

W/NUT, 3/8 x 3/4" mach (LH)

1шт.

17422R1

BOLT W/NUT, 1/2 x 7/8" mach (2-LH; 3-RH)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (2-LH; 3-RH) 1/2"

1шт.

6

612994R1

ANGLE, top sheet rear LH

1шт.

6

612995R1

ANGLE, top sheet rear RH

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

612992R2

ANGLE, top sheet front LH

1шт.

7

612993R1

ANGLE, top sheet front RH (not shown)

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

611346R1

WASHER

WASH, 13/32 x 7/8 x 16 ga cd-pltd (RH)

1шт.

8

612990R2

ANGLE, side second LH

1шт.

8

612991R2

ANGLE, side second RH (not shown)

1шт.

19431R1

BOLT

W/NUT, 3/8 x 1-1/8" cd-pltd crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

612988R2

ANGLE, side first LH

1шт.

9

612989R2

ANGLE, side first RH (not shown)

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

591677R1

SUPPORT, control rod guide (1965 & since)

1шт.

15014R1

BOLT,Sq Nk, 5/16" x 1 1/8"

W/NUT, 5/16 x 1-1/8" crg

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

612986R1

ANGLE, corner LH

1шт.

11

612987R1

ANGLE, corner RH (not shown)

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

612863R1

BOARD, side LH, Serial Range: (prior-1966)

1шт.

12

592670R1

BOARD, side LH (1966 and since)

1шт.

12

612864R1

BOARD, side RH (not shown)

1шт.

19281R1

BOLT

W/NUT, 5/16 x 1" cd-pltd crg

4шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, , w/Nut (7-LH; 10-RH) Short NK, 5/16"-18 x 1", G2

1шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT W/NUT, 3/8 x 1-1/8" crg (2-RH)

1шт.

Q399

WASHER

WASH, 11/32 x 1 x 16 ga

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.

13

591675R1

STIP, adjusting rod guide (1965 & since)

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8 x 1-1/4 crg

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
