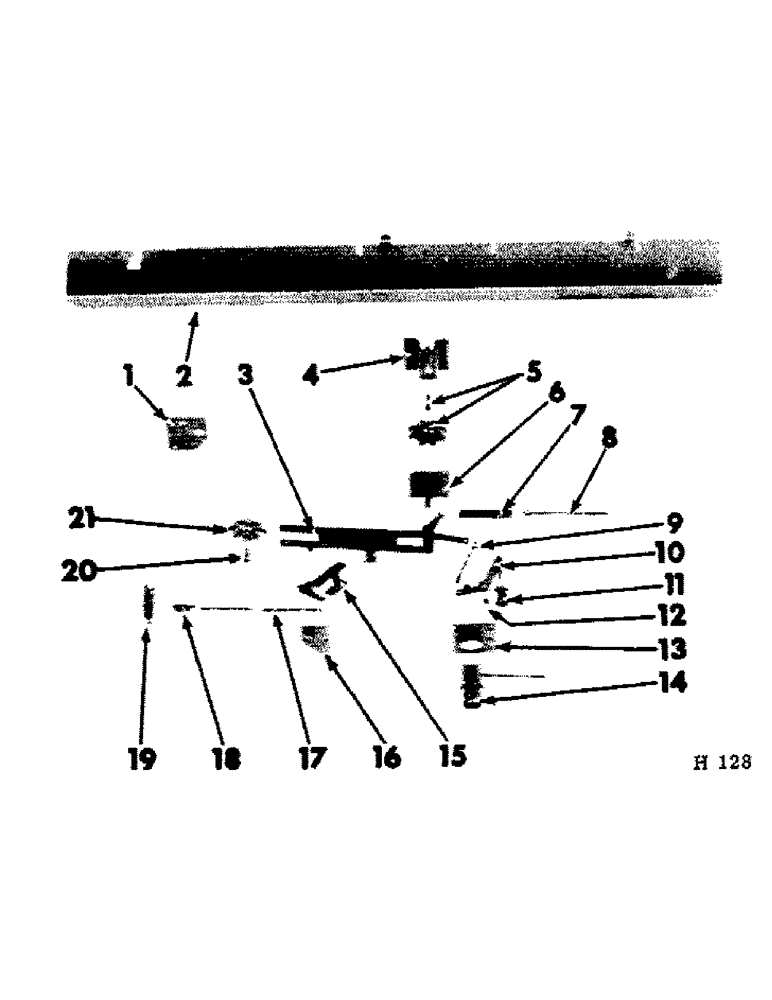

Запчасти Case IH 75 (A-15) - DECLUTCH CHAIN MECHANISM, REGULAR, 1966 AND SINCE

1

591675R1

STRIP, adjusting rod guide

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

W/NUT, 3/8 x 1-1/4" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

591706R11

SHIELD, drive (regular, 1966 & since)

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 5/16 x 3/4" cd-pltd crg

1шт.

19576R1

BOLT,Short NK, 5/16"-18 x 7/8", G2, Full Thd

W/NUT, 5/16 x 7/8" cd-pltd crg

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT W/NUT, 5/16 x 1-1/4" cd-pltd crg

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3

591690R91

ARM, chain lifting upper idler

1шт.

271293

PULLEY

LUB-FTC, 5/16"

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT W/NUT, 3/8 x 3/4" cd-pltd mach

1шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

W/NUT, 1/2 x 3-1/4" cd-pltd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

591687R1

BRACKET, main chain tightener

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT W/NUT, 5/16 x 1-1/4" cd-pltd crg

2шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

W/NUT, 5/16 x 1-1/2" cd-pltd crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

592405R11

SPROCKET, chain tightener (includes 608694R1 bushing)

1шт.

+ Not part of conversion pkg.

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

+ Not part of conversion pkg.

1шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT W/NUT, 1/2 x 3" cd-pltd crg

1шт.

+ Not part of conversion pkg.

1шт.

178374R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga cd-pltd

1шт.

+ Not part of conversion pkg.

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

WASH, 17/32 sq x 1-1/4 x 11 ga cd-pltd

1шт.

+ Not part of conversion pkg.

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

+ Not part of conversion pkg.

1шт.

6

591688R11

BRACKET, chain lift arm

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT W/NUT, 5/16 x 1-1/4" cd-pltd crg

2шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

W/NUT, 5/16 x 1-1/2" cd-pltd crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

591715R1

WASHER

WASH, 1-1/32 x 1-1/2 x 16 ga cd-pltd

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

7

23488S

SPRING

lifting arm adjuster

1шт.

8

591697R1

EYEBOLT, lifting arm adjuster

1шт.

120376

NUT,5/16"-18, G5

2шт.

9

591711R1

ROD, lifting arm

1шт.

608701R1

WASHER

WASH, 21/32 x 1-1/4 x 16 ga cd-pltd

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

10

591712R91

ARM, chain lifting lower

1шт.

591705

HOSE

BOLT W/NUT, 3/8 x 2-1/8" type 2 cd-pltd crg

1шт.

178372R1

WASHER

WASH, 13/32 x 1-1/4 x 16 ga cd-pltd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

3329S

ROLLER

lower lifting arm

1шт.

591714R1

WASHER

WASH, 23/32 x 1-1/4 x 16 ga cd-pltd

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

12

591704R1

BUSHING, lower arm

1шт.

13

613014R1

BLOCK

BRACKET, main axle bearing

2шт.

+ Not part of conversion pkg.

1шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT W/NUT, 3/8 x 1-1/8" crg

7шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

14

613011R2

BEARING, axle

1шт.

187394

CONNECTOR, ELEC,1/8" NPT, Fem

UNION, lubricating pipe

1шт.

+ Not part of conversion pkg.

1шт.

431489

NIPPLE, 1/8 NF x 8-1/2" Nipple, 1/8" NPT x 8 1/2"

1шт.

+ Not part of conversion pkg.

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

LUB-FTG. 1/8" - 45 degree elbow

1шт.

15

591678R91

ARM, upper arm pivot

1шт.

219-28

LUBE NIPPLE,5/16" - 32

LUB-FTG, 5/16"

1шт.

591715R1

WASHER

WASH, 1-1/32 x 1-1/2 x 16 ga cd-pltd

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

16

591685R11

BRACKET, upper idler arm pivot

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT W/NUT, 3/8 x 1" no. 3 cd-pltd plow

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT W/NUT, 3/8 x 1" cd-pltd crg

1шт.

619856R1

WASHER

WASH, 13/32 x 1 x 16 ga cd-pltd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

591715R1

WASHER

WASH, 1-1/32 x 1-1/2 x 16 ga cd-pltd

1шт.

17

591676R1

ROD, lift arm

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

117825

CLEVIS, lift arm rod

1шт.

M-780-1/2

PIN, 7/16 x 1-5/16" std-hd dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

19

591677R1

SUPPORT, rod guide

1шт.

19577R1

BOLT

W/NUT, 5/16 x 1-1/8" cd-pltd crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

608695R1

BUSHING, sprocket bolt outer

2шт.

+ Not part of conversion pkg.

1шт.

21

592405R11

SPROCKET, chain tightener (includes 608694R1, bushing)

1шт.

+ Not part of conversion pkg.

1шт.

608694R1

SPROCKET, inner bushing

1шт.

+ Not part of conversion pkg.

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

+ Not part of conversion pkg.

1шт.

17650R1

BOLT W/NUT, 1/2 x 3-1/4" mach

1шт.

+ Not part of conversion pkg.

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

1шт.

+ Not part of conversion pkg.

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

+ Not part of conversion pkg.

1шт.

588562R91

CHAIN LINK

LINK, drive chain offset

1шт.

608694R1

BUSHING, chain tightener sprocket inner

2шт.

+ Not part of conversion pkg.

1шт.
