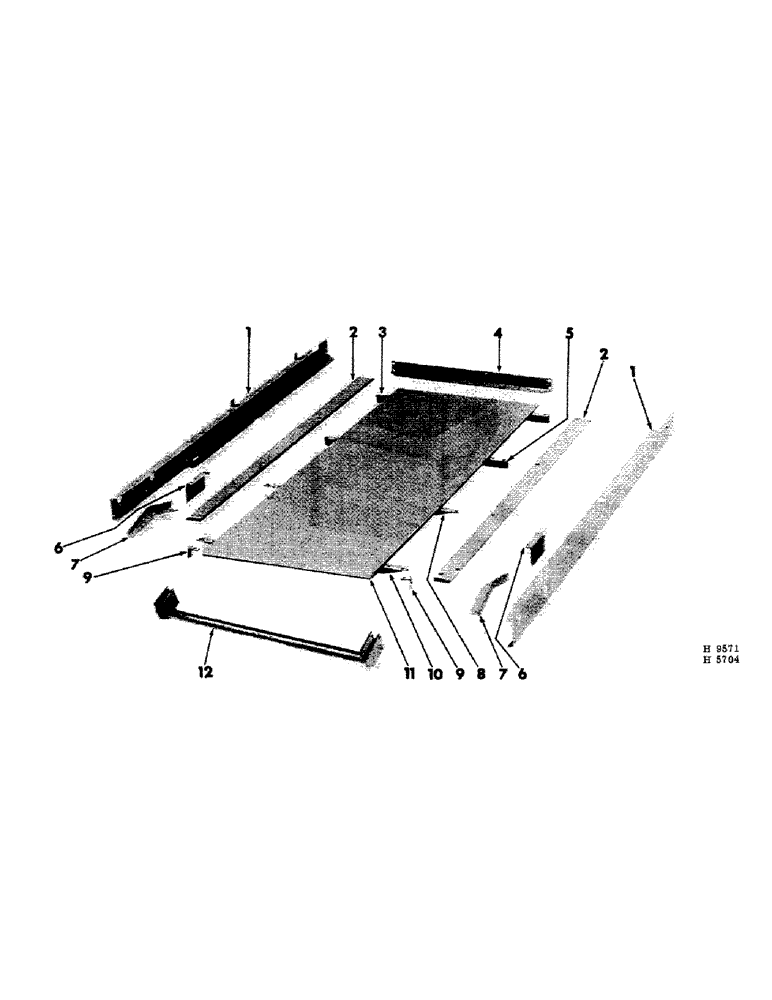

Запчасти Case IH 75 (A-02) - SPREADER BOX BOTTOM, PRODUCT GRAPHIC

1

612982R3

CHANNEL, bottom side LH

1шт.

1

612983R3

CHANNEL, bottom side RH

1шт.

2

612861R1

BOARD, bottom outer LH

1шт.

2

612862R1

BOARD, bottom outer RH

1шт.

15001R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 7/8", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 7/8", G2, Full Thd

6шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

W/NUT, 5/16 x 1-1/4 crg

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

3

612996R1

MEMBER, 1st cross

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

613007R2

MEMBER, front cross

1шт.

623072R1

BOLT W/NUT, 1/2 x 1" cd-pltd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

5

612997R1

MEMBER, 2nd cross

1шт.

15017R1

BOLT W/NUT, 1/2 x 1-1/8" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

613163R1

BRACKET, 3rd cross member LH

1шт.

6

613164R1

BRACKET, 3rd cross member RH

1шт.

19431R1

BOLT

W/NUT, 3/8 x 1-1/8" cd-pltd crg

4шт.

15017R1

BOLT W/NUT, 1/2 x 1-1/8" crg

2шт.

11002VA

WASHER

WASH, 17/32 x 7/8 x 16 ga

6шт.

120282

LOCK WASHER

LK-WASH, 3/8" cd-pltd

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

612984R1

ANGLE, apron raising LH

1шт.

7

612985R1

ANGLE, apron raising RH

1шт.

15543R1

BOLT

W/NUT, 3/8 x 3/4" no. 3 plow

2шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

W/NUT, 3/8 x 1" no. 3 plow

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

612998R1

MEMBER, 3rd cross

1шт.

15017R1

BOLT W/NUT, 1/2 x 1-1/8" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

613105R1

BRACKET, 2nd & 4th cross member

4шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 7/16"-14 x 1", G2, Full Thd

3шт.

15016R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/8" , Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/8", G2

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

10

612999R1

MEMBER, fourth cross

1шт.

15017R1

BOLT W/NUT, 1/2 x 1-1/8" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

613000R1

BOARD, bottom

1шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

W/NUT, 5/16 x 1-1/4" crg

16шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

12

613001R21

BRACE, box rear

1шт.

17427R1

BOLT W/NUT, 7/16 x 1" mach

4шт.

19757R1

BOLT W/NUT, 7/16 x 1-1/8" cd-pltd mach

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

613535R93

PACKAGE, product graphic service (composed of product graphics listed)

1шт.

1001424R2

PRODUCT GRAPHIC, "I.H."

2шт.

PRODUCT GRAPHIC, "be careful" (order 1-613535R93, pkg) (NSS)

1шт.

PRODUCT GRAPHIC, "warning & lubricating" (order 1-613535R93, pkg) (NSS)

1шт.

2750988R1

PRODUCT GRAPHIC, "McCormick-International"

2шт.

PRODUCT GRAPHIC, "75" (order 1-613535R93, pkg) (NSS)

2шт.
