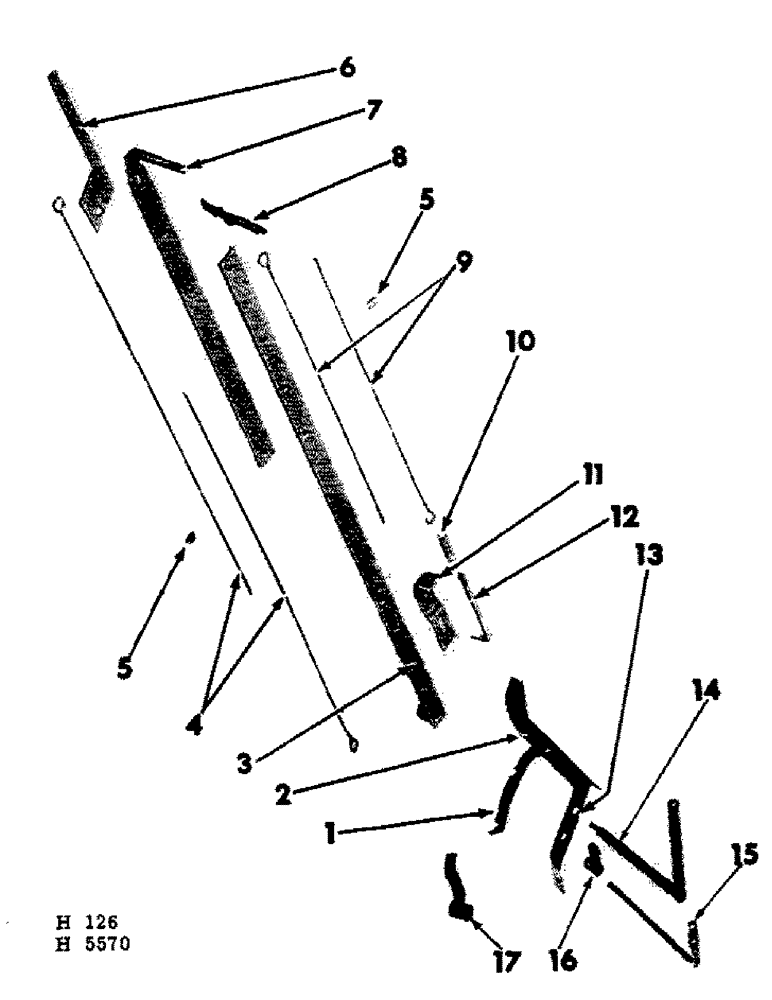

Запчасти Case IH 75 (A-14) - DECLUTCH LEVER, REGULAR 1966 AND SINCE

591669R91

PACKAGE, drive declutch field conversion (to convert machines w/rope or lever feed control prior to 1966) (composed of parts on pages 14 & 15 unless otherwise noted)

1шт.

1

591671R1

SECTOR

lever

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

613263R1

ANGLE, sector support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 3/8 x 3/4" cd-pltd crg

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

3

613260R21

LEVER, adjusting lower

1шт.

19571R1

BOLT,Hex, 3/8"-16 x 1 1/8", G2

W/NUT, 3/8 x 1-1/8" cd-pltd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

619559R1

ROD, beater lever

2шт.

Q3547

HEADED PIN,1/2" x 1"

PIN, 1/2 x 1" std-hd dld

1шт.

11002VA

WASHER

WASH, 17/32 x 7/8 x 16 ga

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

5

PO2193

CLAMP

lever adjusting rod

8шт.

15000R1

BOLT,1/4" x 7/8"

W/NUT, 1/4 x 7/8" crg

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

6

613289R11

LEVER, beater control

1шт.

15019R1

BOLT, 3/8 x 1-1/8" dld crg

1шт.

109886

NUT

3/8" slt

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

Q1505

WASHER

WASH, 13/32 x 1 x 16 ga

1шт.

Q5035

WASHER

WASH, 17/32 x 1 x 16 ga

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

7

617476R1

LEVER, adjusting upper

1шт.

15001R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 7/8", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 7/8", G2, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

8

PO15296

HANDLE

LATCH, lever control

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

9

619558R1

ROD, lever

2шт.

10

RP5232

SPRING, adjusting lever plunger

1шт.

11

617475R1

GUIDE, sector plunger

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1" truss-hd

2шт.

12

617426R1

PLUNGER, lever

1шт.

W6652

WASHER

WASH, 15/32 x 1 x 16 ga

3шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

13

613293R1

SUPPORT, adjusting rod

1шт.

19573R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

591710R11

ROD, main drive chain

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

178375R1

WASHER

WASH, 25/32 x 1-1/4 x 16 ga cd-pltd

1шт.

15

591709R1

ROD, adjusting LH

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

178375R1

WASHER

WASH, 25/32 x 1-1/4 x 16 ga cd-pltd

1шт.

15

613292R1

ROD, adjusting RH

1шт.

Q3501

WASHER

WASH, 25/32 x 1-1/4 x 16 ga

1шт.

16

613269R1

ARM, lever adjusting

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

17

592725R91

ARM, chain drive connecting

1шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

1шт.

19571R1

BOLT,Hex, 3/8"-16 x 1 1/8", G2

W/NUT, 3/8 x 1-1/8" cd-pltd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
