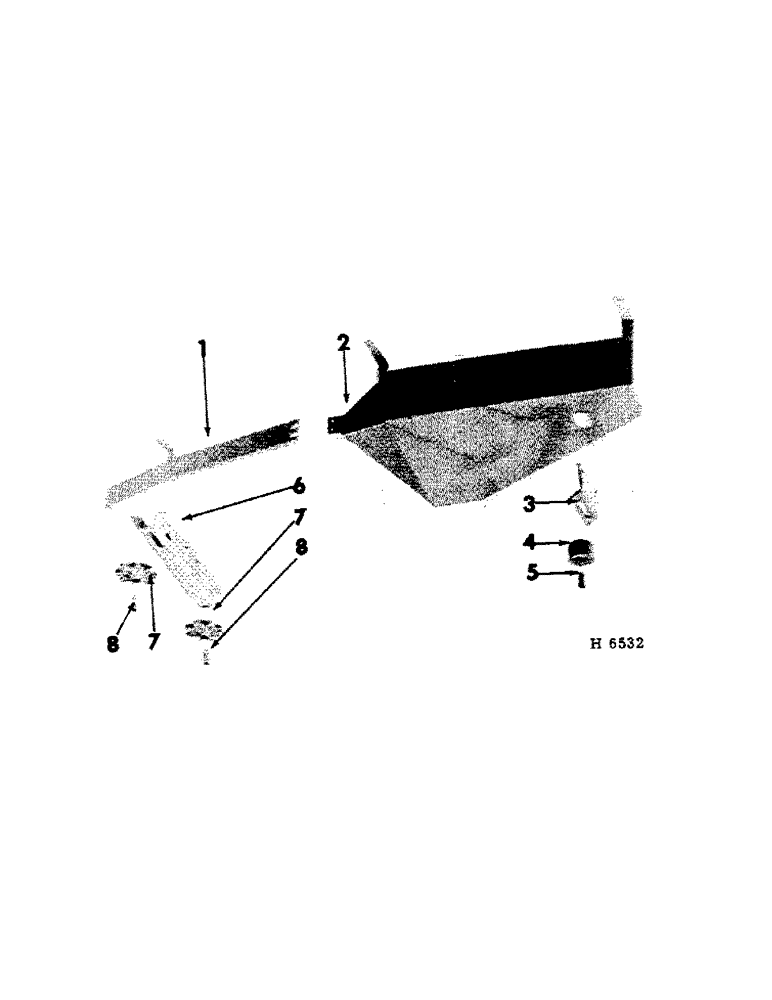

Запчасти Case IH 75 (A-13[A]) - MAIN DRIVE CHAIN TIGHTENERS AND SHIELDS

1

613980R91

SHIELD, drive front, Serial Range: (prior-1966)

1шт.

613127R1

NUT, 5/16" - NF speed

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2" slt-rd-hd cd-pltd

2шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT W/NUT, 5/16 x 1-1/4" cd-pltd crg

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

613252R92

SHIELD, drive rear, Serial Range: (prior-1966)

1шт.

15001R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 7/8", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 7/8", G2, Full Thd

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 1", G2

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT W/NUT, 5/16 x 1-1/4" cd-pltd crg

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

612777R1

BRACKET, lower beater chain tightener

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

W/NUT, 3/8 x 1-1/4" mach

1шт.

17448R1

BOLT (SPREADER)

BOLT W/NUT, 1/2 x 1-1/4" mach

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

612859R1

ROLLER

lower beater chain tightener

1шт.

15144R1

BOLT

W/NUT, 1/2 x 3" crg

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

612794R1

SPACER

BUSHING, chain tightener roller

1шт.

6

613975R2

BRACKET, chain tightener, Serial Range: (prior-1966)

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

W/NUT, 3/8 x 3/4" mach

2шт.

14995R1

BOLT

W/NUT, 3/8 x 3/4" crg

2шт.

Q1504

WASHER

WASH, 13/32 x 7/8 x 16 ga

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

SPROCKET, chain tightener (prior to 1964, order 1-608695R1, bushing & 1-613974R21, sprocket)

1шт.

7

613974R21

SPROCKET, 8T chain tightener (includes bushing, 608694R1), Serial Range: (prior-1966)

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

M83536

WASHER

WASH, 17/32 sq x 1-1/4 x 11 ga

2шт.

15144R1

BOLT

W/NUT, 1/2 x 3" crg

2шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

612794R1

SPACER

BUSHING, sprocket, Serial Range: (prior-1964)

1шт.

8

608695R1

BUSHING, sprocket (1864 - 1966)

1шт.

608694R1

BUSHING, sprocket inner, Serial Range: (prior-1966)

2шт.
