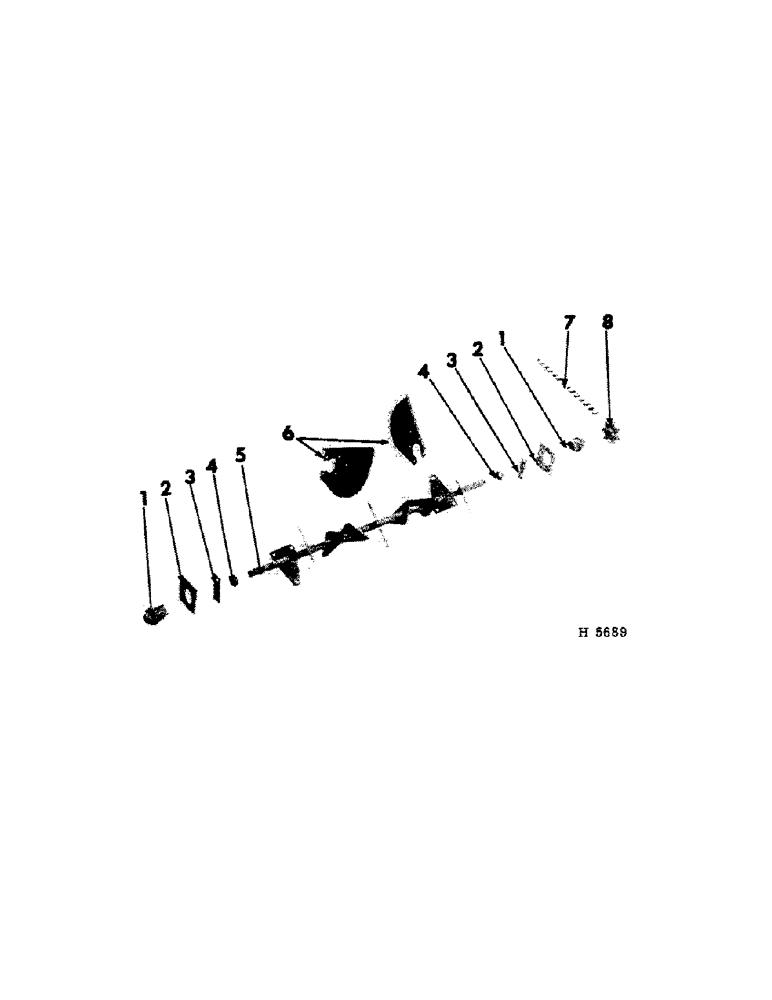

Запчасти Case IH 75 (A-12) - WIDESPREAD, PADDLE TYPE, REGULAR

1

613297R1

HOUSING, shaft brg

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

2

613055R1

SUPPORT, brg

2шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

3

613056R1

PLATE, brg housing stop

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

613045R1

COLLAR, widespread shaft

2шт.

614072R1

SCREW, 3/8 x 1/4" hdls-soc knurled-cup-pt set

4шт.

5

613305R91

SHAFT, widespread paddle

1шт.

119195

COTTER PIN,3/16" x 1 5/8"

PIN, SPLIT (COTTER), 3/16" x 1 5/8"

2шт.

Q369

WASHER

WASH, 1-5/32 x 1-5/8 x 16 ga

2шт.

Q162

WASHER

WASH, 1-5/32 x 1-3/4 x 16 ga

1шт.

6

613303R1

PADDLE, widespread LH

5шт.

6

613304R1

PADDLE, widespread RH

5шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

26шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg (center)

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

30шт.

7

CHAIN, widespread drive (order 1-CS-55 10 ft. chain & reduce to 40 links)

1шт.

8

613298R1

SPROCKET, 7T widespread driven

1шт.

Q42

KEY,5/16" Sq x 1 3/8", Par

5/16 x 5/16 x 1-3/8" straight

1шт.
