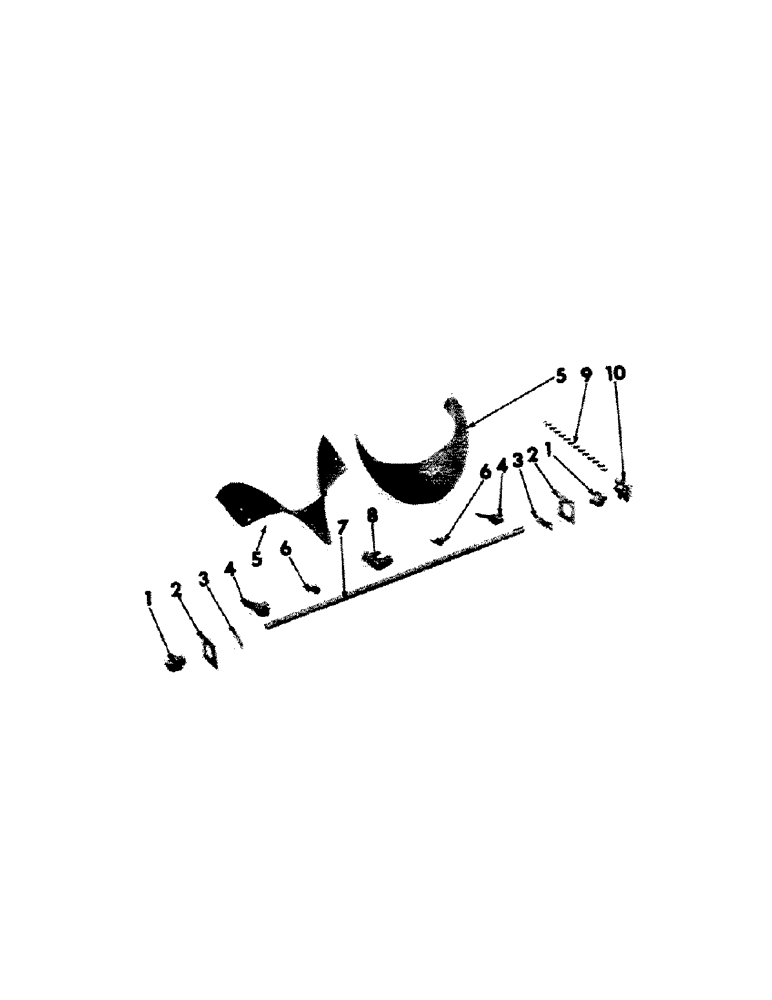

Запчасти Case IH 75 (A-12[B]) - WIDESPREAD, SPIRAL TYPE, SPECIAL

1

613051R1

HOUSING, shaft brg

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

2

613055R1

SUPPORT, widespread brg

2шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

3

613056R1

STRAP, brg stop

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

721SB

BRACKET, spiral outer LH

1шт.

4

720SB

BRACKET, spiral outer RH

1шт.

15072R1

BOLT

W/NUT, 7/16 x 2" crg

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

5

613094R1

SPIRAL, widespread LH

1шт.

5

613095R1

SPIRAL, widespread RH

1шт.

104097

RIVET,But Hd, 5/16" x 3/4"

5/16 x 3/4" small-b-hd

2шт.

104098

RIVET,But Hd, 5/16" x 7/8"

5/16 x 7/8" small-b-hd

8шт.

6

3003SA

BRACKET, spiral inner LH

1шт.

6

3002SA

BRACKET, spiral inner RH

1шт.

7

613053R1

SHAFT, widespread

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

Q3481

WASHER

WASH, 1-1/32 x 1-1/2 x 16 ga

1шт.

8

613052R1

BRACKET, spiral center

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

9

CHAIN, widespread drive (order 1-CS-55 10 ft. chain & reduce to 40 links)

1шт.

10

613050R1

SPROCKET, 7T widespread driven

1шт.

Q67

KEY,1/4" Sq x 1 1/8", Par

1/4 x 1/4 x 1-1/8" straight

1шт.
