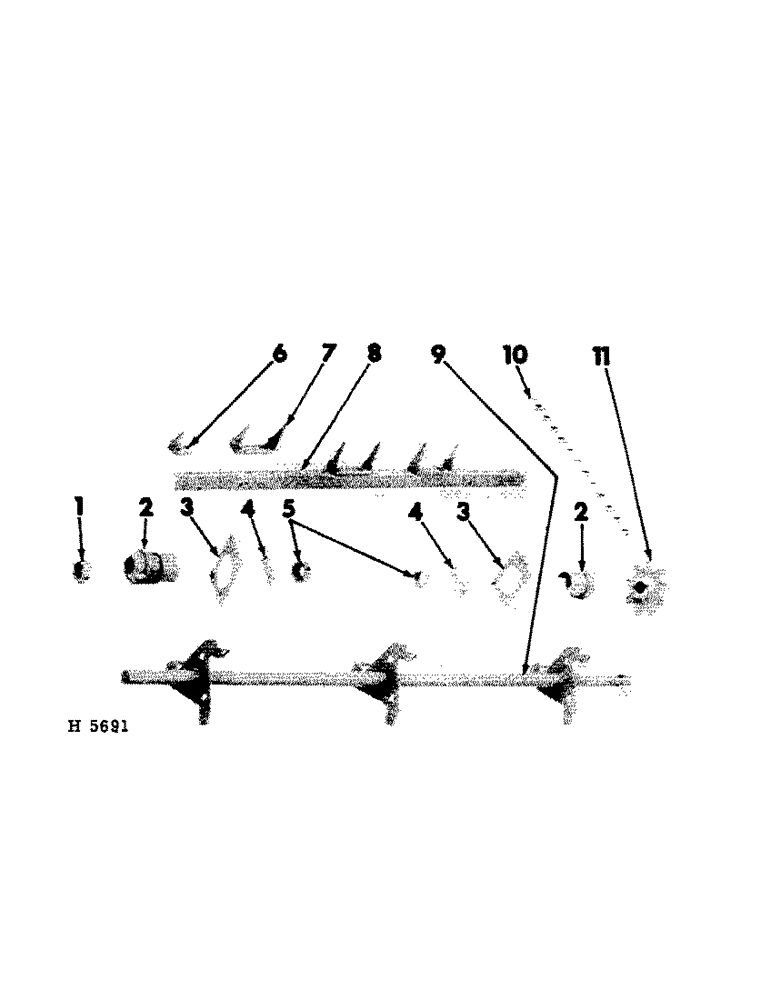

Запчасти Case IH 75 (A-11) - UPPER BEATER

1

613046R1

COLLAR, shaft end LH

1шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

2

613038R1

BEARING, upper beater shaft

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

3

612974R1

PLATE, shaft support inner

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg (LH)

1шт.

19431R1

BOLT

W/NUT, 3/8 x 1-1/8" cd-pltd crg

4шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8 x 1-1/4" crg (RH)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

619603R1

PLATE

STRAP, brg stop

2шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT W/NUT, 3/8 x 1-1/8" crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

613045R1

COLLAR, beater shaft inner

2шт.

614072R1

SCREW, 3/8 - NF x 1/4" hdls soc knurled cup-pt set

4шт.

6

617507R1

TOOTH, beater single (LH)

2шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

4шт.

7

617506R1

TOOTH

beater double

15шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

30шт.

8

613047R91

CROSSMEMBER, no. 1 (includes 12-106915, rivets & 5-617506R1 & 1-617507R1, teeth)

1шт.

8

613048R91

CROSSMEMBER, no. 2 (includes 12-106915, rivets & 5-617506R1, & 1-617507R1 teeth)

1шт.

8

613049R91

CROSSMEMBER, no. 3 (includes 10-106915, rivets & 5-617506R1 & 1-617507R1, teeth)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

W/NUT, 3/8 x 7/8" cd-pltd type 2

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

9

613040R11

SHAFT, upper beater

1шт.

Q162

WASHER

WASH, 1-5/32 x 1-3/4 x 16 ga

1шт.

10

CHAIN, upper beater drive (order 1-CS-55 10 ft. chain & reduce to 38 links)

1шт.

11

613039R1

SPROCKET, 9T upper beater driven

1шт.

117977

WOODRUFF KEY

KEY, 5/16 x 1" Woodruff

1шт.

19506R1

PIN,3/16" x 2", Coiled

1шт.
