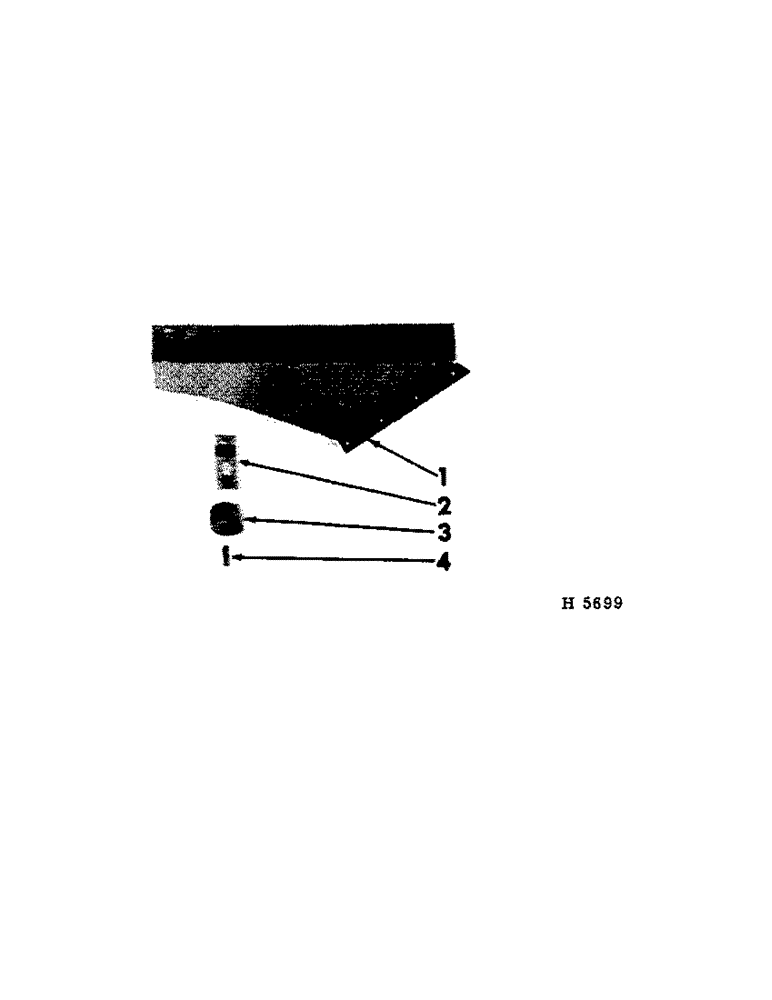

Запчасти Case IH 75 (A-11[A]) - WIDESPREAD CHAIN TIGHTENER AND SHIELD

1

613057R1

SHIELD, widespread chain

1шт.

19556R1

BOLT W/NUT, 1/4 x 5/8" cd-pltd mach

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT W/NUT, 1/4 x 5/8" cd-pltd crg

1шт.

120392

WASHER,1/4", SAE

WASH, 9/32 x 5/8 x 16 ga cd-pltd

1шт.

619855R1

WASHER

WASH, 11/32 x 3/4 x 16 ga cd-pltd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19286R1

BOLT W/NUT, 5/16 x 3/4" cd-pltd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

613054R1

BRACKET, chain tightener

1шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

612859R1

ROLLER

chain tightener

1шт.

15144R1

BOLT

W/NUT, 1/2 x 3" crg

1шт.

12026R1

WASHER

WASH, 17/32 x 1 x 16 ga

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

612794R1

SPACER

BUSHING, chain tightener roller

1шт.
