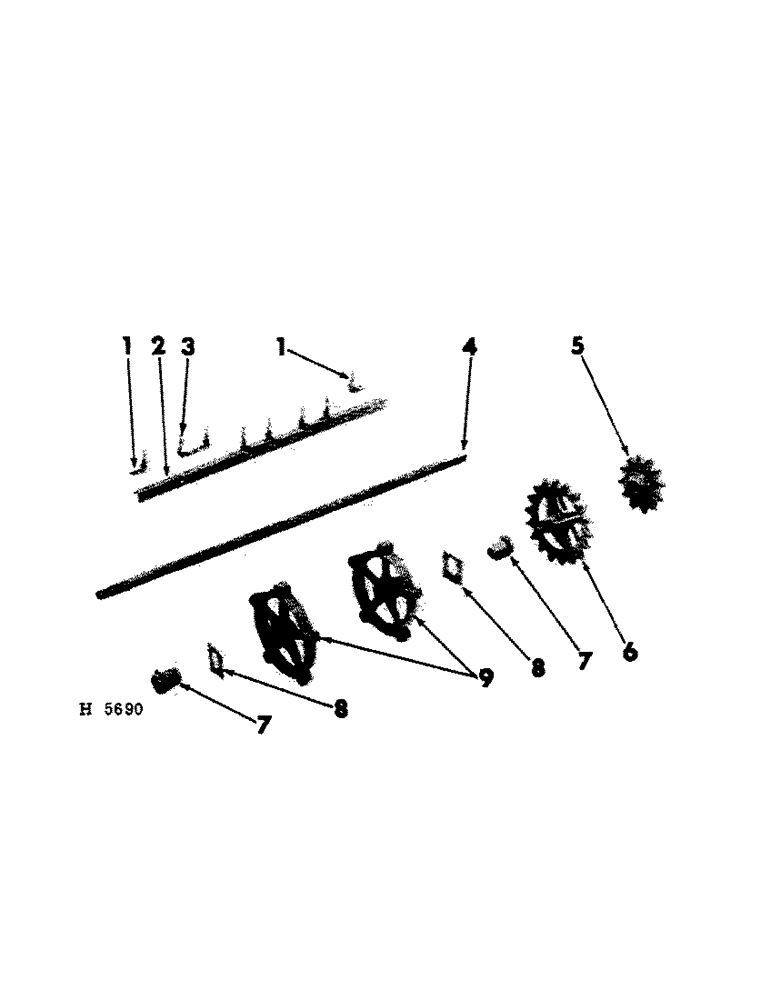

Запчасти Case IH 75 (A-10) - LOWER BEATER

1

617507R1

TOOTH, beater single LH

1шт.

1

617508R1

TOOTH, beater single RH

3шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

8шт.

2

613033R91

CROSSMEMBER, no. 1 (includes 8-106915, rivets & 4-617506R1, teeth)

1шт.

2

613034R91

CROSSMEMBER, no. 2 (includes 8-106915, rivets & 4-617506R1, teeth)

1шт.

2

613035R91

CROSSMEMBER, no. 3 (includes 8-106915, rivets & 4-617506R1, teeth)

1шт.

2

613036R91

CROSSMEMBER, no. 4 (includes 10-106915, rivets & 3-617506R1, 1-617506R1, 1-617507R1 & 1-617508R1, teeth)

1шт.

2

613037R91

CROSSMEMBER, no. 5 (includes 10-106915, rivets & 3-617506R1 & 2-617508R1, teeth)

1шт.

180129

BOLT,Hex, 3/8" - 16 x 1 7/8"

W/NUT, 3/8 x 7/8" cd-pltd type 2

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

3

617506R1

TOOTH

beater double

18шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

36шт.

4

613023R2

SHAFT, lower beater

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

Q162

WASHER

WASH, 1-5/32 x 1-3/4 x 16 ga

1шт.

5

613017R1

SPROCKET, 12T upper beater drive

1шт.

619719R1

KEY, 5/16 x 5/16 x 2-1/8" straight 5/16" Sq x 2 1/8", Par

1шт.

6

613019R1

SPROCKET, 18T widespread drive

1шт.

619719R1

KEY, 5/16 x 5/16 x 2-1/8" straight 5/16" Sq x 2 1/8", Par

1шт.

7

613022R1

BEARING, beater shaft

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

8

613026R1

SUPPORT, shaft brg

2шт.

19416R1

BOLT

W/NUT, 5/16 x 3/4" cd-pltd crg

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

613021R1

BRACKET, beater crossmember

2шт.

616509R1

KEY, 5/16 x 5/16 x 2-5/8" straight

2шт.

19479R1

PIN,1/4" x 2", Coiled

(LH) 1/4" x 2", Coiled

1шт.
