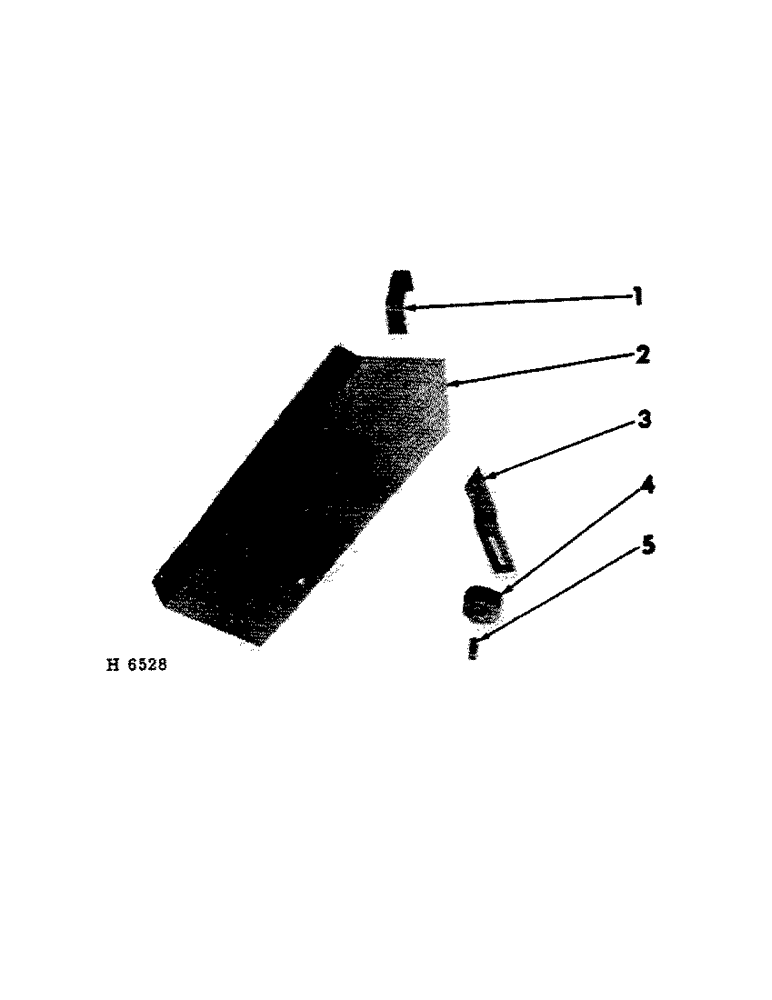

Запчасти Case IH 75 (A-10[A]) - UPPER BEATER CHAIN TIGHTENER AND SHIELD

1

613617R1

BRACKET, upper beater shield

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8 x 1-1/4 crg

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

612880R1

SHIELD, upper beater chain

1шт.

19282R1

BOLT

W/NUT, 1/4 x 1/2" cd-pltd crg

4шт.

19556R1

BOLT W/NUT, 1/4 x 5/8" cd-pltd mach

2шт.

19286R1

BOLT W/NUT, 5/16 x 3/4" cd-pltd mach

1шт.

619855R1

WASHER

WASH, 11/32 x 3/4 x 16 ga cd-pltd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

612970R1

BRACKET, chain tightener

1шт.

19480R1

BOLT W/NUT, 3/8 x 1-1/4" cd-pltd crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

612859R1

ROLLER

chain tightener

1шт.

15126R1

BOLT, 1/2 x 2-3/4 crg

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

612794R1

SPACER

BUSHING, chain tightener roller

1шт.
