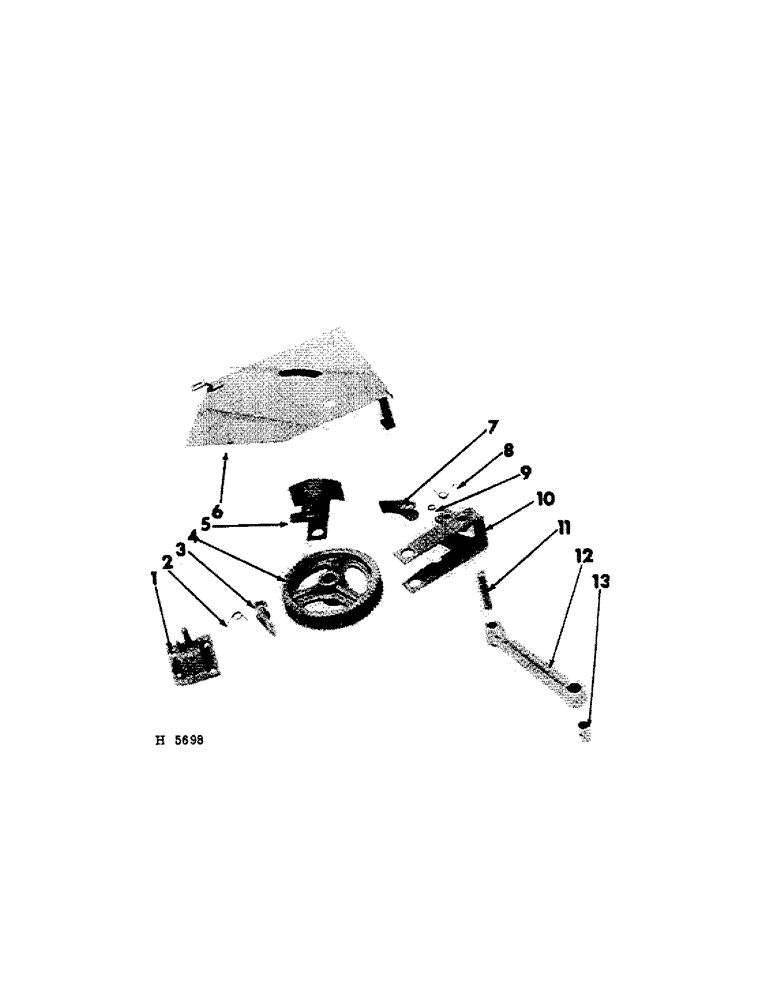

Запчасти Case IH 75 (A-09) - RATCHET WHEEL

1

613086R91

SUPPORT, holding pawl

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

4шт.

Q1505

WASHER

WASH, 13/32 x 1 x 16 ga

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

5291SA

SPRING

holding pawl

1шт.

3

617431R1

PAWL

ratchet holding

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

4

613066R1

WHEEL, 67T ratchet

1шт.

Q5023

KEY,5/16" Sq x 2 1/4", Par

5/16 x 5/16 x 2-1/4" straight

1шт.

5

613087R91

SECTOR, feed control

1шт.

6

613121R11

SHIELD, ratchet wheel

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2" slt-rd-hd

1шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

1шт.

19431R1

BOLT

W/NUT, 3/8 x 1/8" cd-pltd crg

1шт.

613127R1

NUT, 5/16" - NF speed

1шт.

611346R1

WASHER

WASH, 13/32 x 7/8 x 16 ga cd-pltd

1шт.

120282

LOCK WASHER

LK-WASH, 3/8" cd-pltd

2шт.

7

617431R1

PAWL

ratchet

1шт.

496032R1

PIN, 5/8 x 3-5/8" std-hd dld

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

8

612872R1

SPRING

ratchet pawl

1шт.

9

603078R1

SPACER, ratchet pawl

2шт.

10

613078R11

BOW, ratchet wheel

1шт.

11

613072R1

PIN, pitman arm

1шт.

618638R1

PIN,3/16" x 1 1/8", Coiled

1шт.

Q3501

WASHER

WASH, 25/32 x 1-1/4 x 16 ga

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

21868V

WASHER

WASH, 29/32 x 1-1/2 x 16 ga

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

12

613069R1

ARM, ratchet rocker

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 65 degree elbow

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

13

613085R1

BEARING, ratchet rocker arm

1шт.
