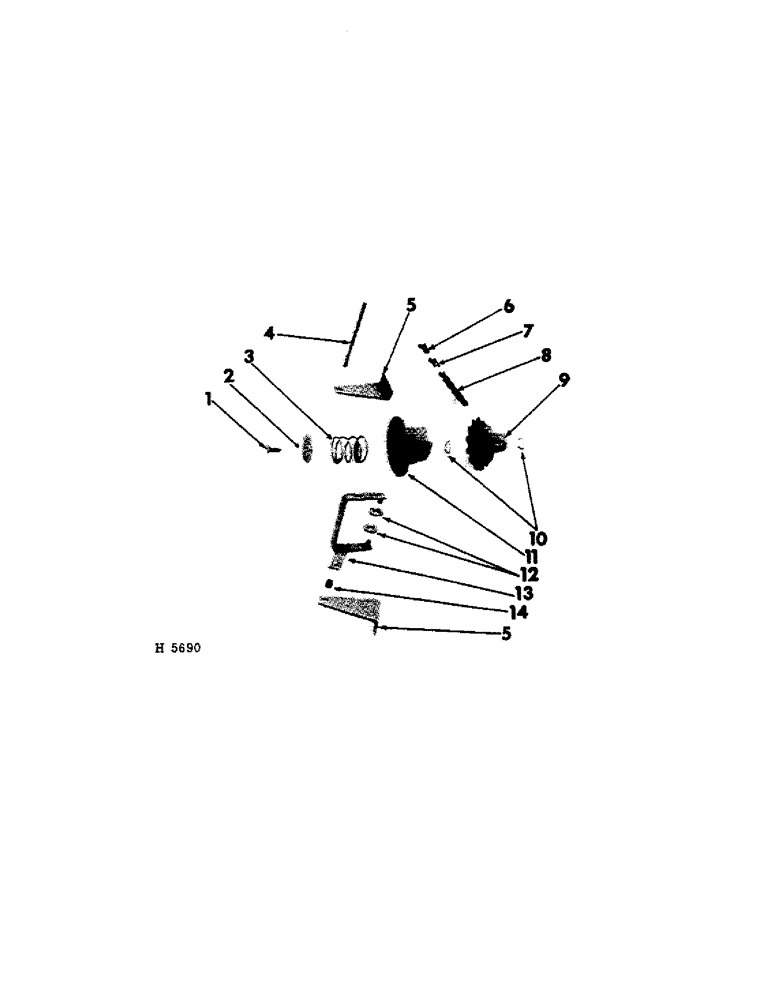

Запчасти Case IH 75 (A-09[A]) - WIDESPREAD AND LOWER BEATER CLUTCH

1

611490R1

BOLT, lower beater shaft lub

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

2

611680R1

WASHER

beater clutch

1шт.

3

369A

SPRING

clutch throw-out

1шт.

4

617424R1

SHAFT, clutch throw-out

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

5

612781R1

SUPPORT, clutch throw-out shaft

2шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

456929R91

CHAIN LINK

LINK, drive chain offset

2шт.

1360D

PIN, link offset

2шт.

1751D

PACKAGE

C-PIN, 1/4 lb. pkg.

1шт.

7

456980R91

CHAIN LINK

LINK, drive chain connecting

1шт.

1751D

PACKAGE

C-PIN, 1/4 lb. pkg.

1шт.

8

CHAIN, widespread & lower beater drive (1-1/4" extended pitch agricultural) (order 1-569089R91, 10 ft. chain, reduce to 53 links & add 1-456980R91, connecting & 2-456929R91, offset links)

1шт.

9

613018R21

SPROCKET, 13T beater drive (includes 608693R1, bushing)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

10

454319R1

RING

sprocket retaining

2шт.

11

613020R1

PLATE, clutch

1шт.

12

617439R1

WASHER

ROLLER, clutch throw-out

2шт.

13

617633R91

ARM, clutch throw-out

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

14

612714R1

SPACER

throw-out shaft

1шт.

608693R1

BUSHING

drive sprocket (1963 & since)

1шт.
