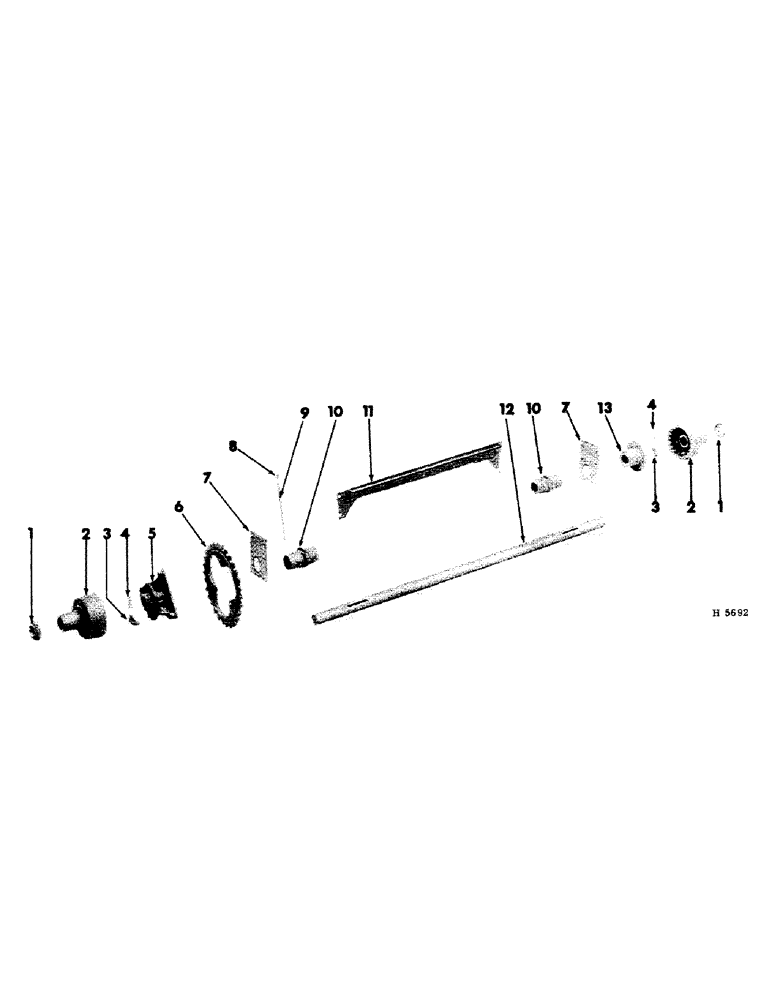

Запчасти Case IH 75 (A-06) - AXLE

1

3375S

COLLAR, axle adjusting

2шт.

613016R1

PIN, 3/8 x 2-5/8" dld linch

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

2

613012

HUB, wheel

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 65 degree elbow

2шт.

3

715SC

PAWL

wheel driving

4шт.

U5350

PIN, 5/16 x 1-11/16" std-hd dld

4шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

4шт.

4

76DS

SPRING

pawl

4шт.

5

613009R1

PLATE, sprocket hub & pawl LH

1шт.

612971R1

KEY, 1/2 x 1/2 x 2-1/2" straight key 1/2" Sq x 2 1/2", Par

1шт.

6

613978R1

SPROCKET, 27T drive

1шт.

17550R1

BOLT,Hex, 1/2"-13 x 2 1/4", G2

W/NUT, 1/2 x 2-1/4" mach

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

7

613014R1

BLOCK

BRACKET, axle brg

2шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT W/NUT, 3/8 x 1-1/8" crg

7шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

8

187394

CONNECTOR, ELEC,1/8" NPT, Fem

UNION, 1/8 - NF x 13/16" brg LH

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 45 degree elbow

1шт.

9

431489

NIPPLE, 1/8 - NF x 8-1/2" brg LH Nipple, 1/8" NPT x 8 1/2"

1шт.

10

613011R2

BEARING, axle

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (RH) 1/8"-27 x .66 lg

1шт.

11

613015R11

MEMBER, axle cross

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

W/NUT, 3/8 x 1" no. 3 plow

2шт.

623072R1

BOLT W/NUT, 1/2 x 1" cd-pltd mach

2шт.

19493R1

BOLT W/NUT, 1/2 x 1" cd-pltd crg

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

12

613013R1

AXLE, drive

1шт.

Q3491

WASH, 2-1/32 x 2-3/4 x 14 ga

1шт.

13

613010R1

PLATE, drive pawl (RH)

1шт.

612971R1

KEY, 1/2 x 1/2 x 2-1/2" straight 1/2" Sq x 2 1/2", Par

1шт.
