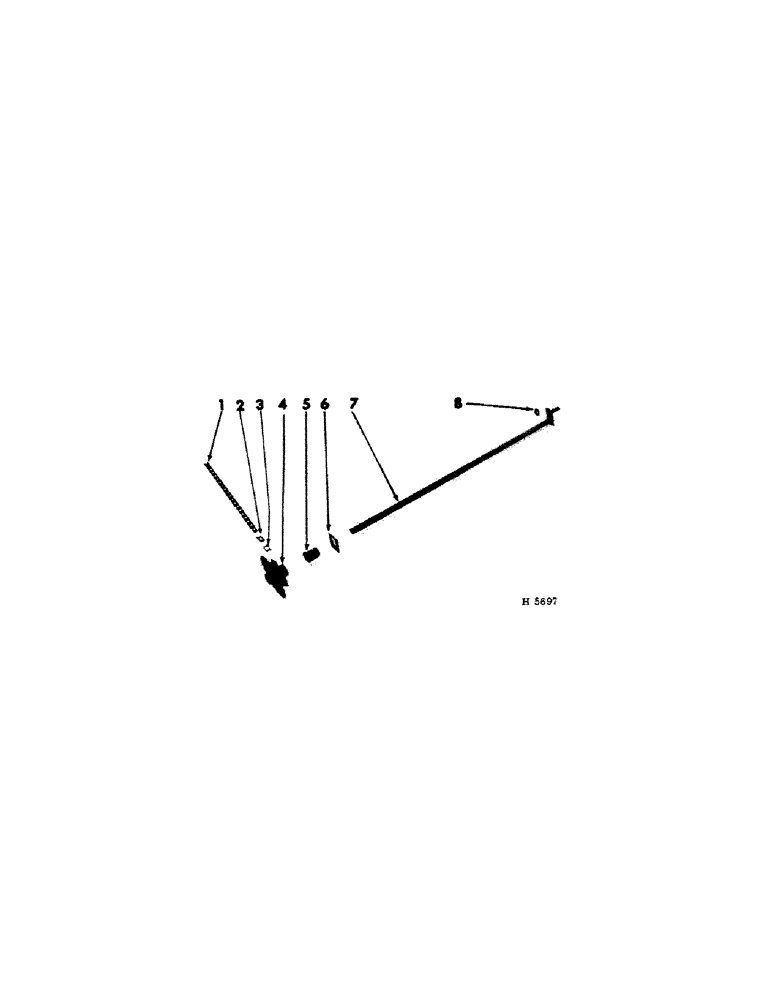

Запчасти Case IH 75 (A-06[A]) - ECCENTRIC SHAFT

1

CHAIN, drive (1-5/8" extended pitch agricultural) (order 1-606039R91, 10 ft. chain, reduce to 57 links, add 1-588564R11, connecting link & 1-566562R91, offset link)

1шт.

2

566562R91

LINK

chain offset

1шт.

3

588564R11

LINK

chain connecting

1шт.

614046R91

PACKAGE

C-PIN, 1/4 lb. pkg.

1шт.

4

613976R1

SPROCKET, 11T & 20T transmission

1шт.

612930R1

KEY, 5/16 x 5/16 x 3-1/4" straight 5/16" Sq x 3 1/4", Par

1шт.

5

613022R1

BEARING, eccentric shaft

2шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

LUB-FTG, 1/8" - 30 degree elbow

2шт.

6

613026R1

SUPPORT, eccentric shaft brg

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

7

613073R11

SHAFT, pitman arm eccentric

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

21868V

WASHER

WASH, 29/32 x 1-1/2 x 16 ga

2шт.

68049H

WASHER

WASH, 1-5/32 x 1-1/2 16 ga

1шт.

8

605599R1

SPACER, eccentric shaft

1шт.
