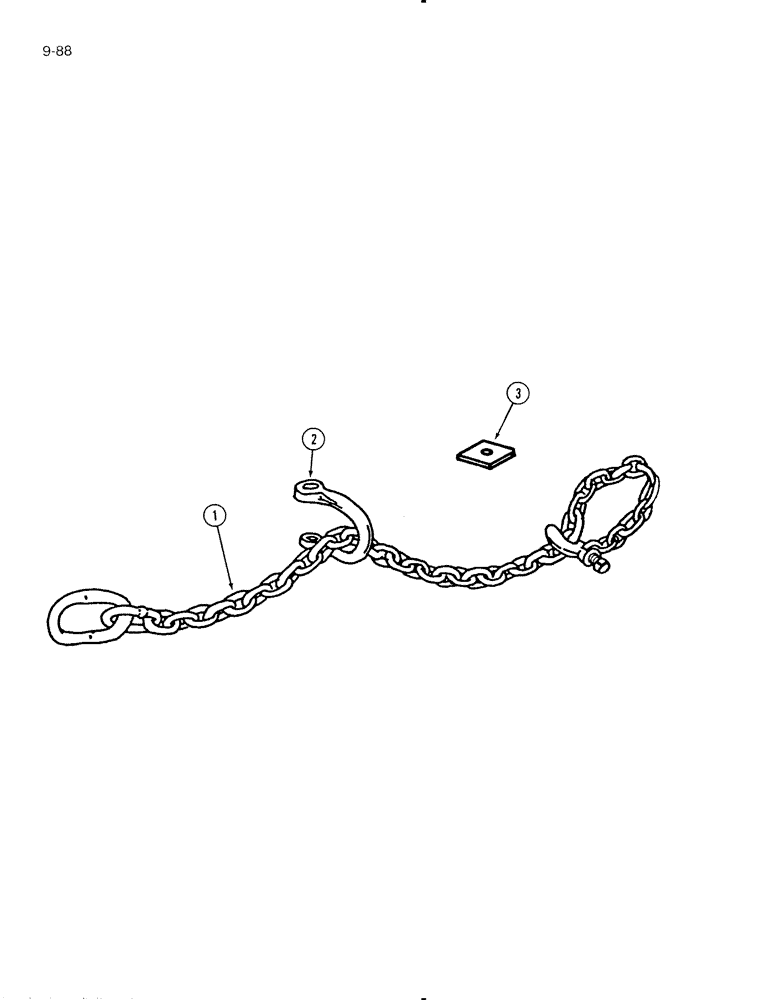

Запчасти Case IH 595 (9-88) - SAFETY CHAIN (09) - CHASSIS/ATTACHMENTS

1

63506C3

CHAIN (AG)

CHAIN ASSEMBLY - safety (20000 lbs)

1шт.

61913C92

PACKAGE

KIT - clevis and hardware, safety chain (20000 lbs)

1шт.

2

148558C1

CLEVIS

- safety chain (Replaces S9173A)

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

20033R1

LOCK NUT

NUT - hex, lock, 5/8 inch NC

1шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 5/32 inch

1шт.

22244R1

LOCK NUT

- hex, lock, 3/4 inch NC

1шт.

1

822544C2

CHAIN (AG)

CHAIN ASSEMBLY - safety (30000 lbs)

1шт.

1279720C91

CHAIN (AG)

KIT - clevis and hardware, safety chain (30000 lbs)

1шт.

2

1279163C1

CLEVIS COUPLING

CLEVIS - safety chain

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

20033R1

LOCK NUT

NUT - hex, lock, 5/8 inch NC

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

22244R1

LOCK NUT

- hex, lock, 3/4 inch NC

1шт.

3

822395C1

BAR

PLATE - support, safety chain

2шт.
