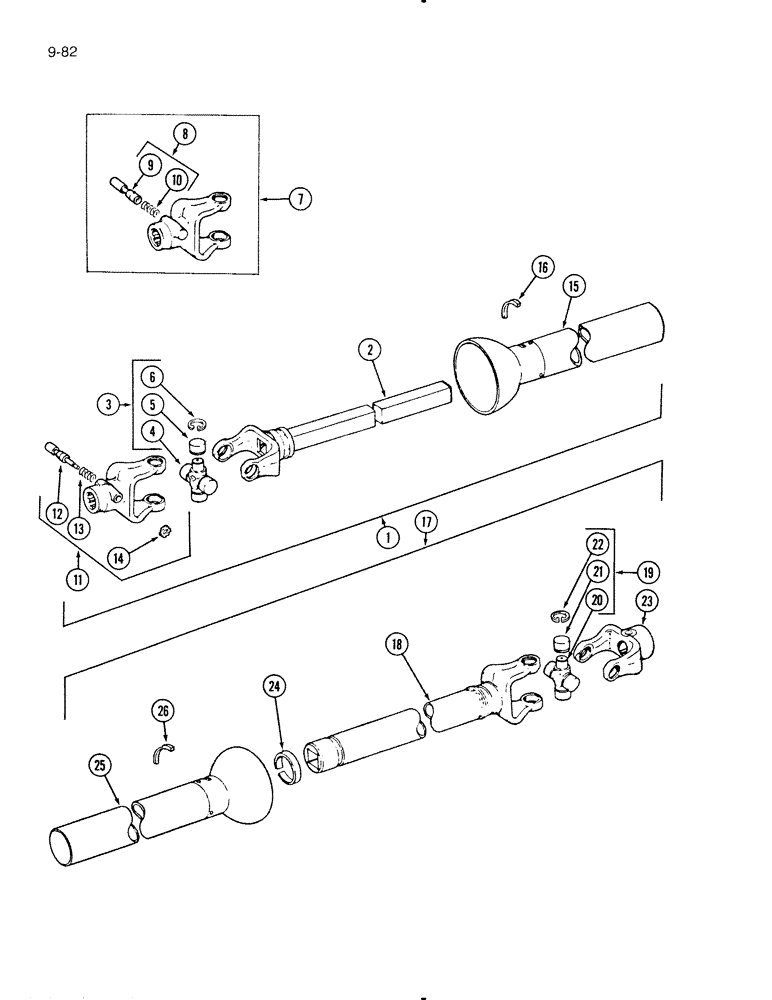

Запчасти Case IH 595 (9-82) - MAIN DRIVE UNIVERSAL JOINT, 540 RPM, HAYES (09) - CHASSIS/ATTACHMENTS

1

820196C93

JOINT

ASSEMBLY - universal, front half

1шт.

2

820217C1

YOKE

- with shaft

1шт.

3

753772

KIT

CROSS ASSEMBLY - center (Replaces 667558R91)

1шт.

4

NSS

NOT SOLD SEPARAT

CROSS - center (Order 753772 cross assembly)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

5

NSS

NOT SOLD SEPARAT

BEARING - center cross (Order 753772 cross assembly)

4шт.

6

667561R1

RING

- retaining, internal

4шт.

7

613897R92

FORK

YOKE ASSEMBLY - quick detachable (Order 568100R93 yoke assembly, item 11)

1шт.

8

613867R11

PIN

ASSEMBLY - locking

1шт.

9

NSS

NOT SOLD SEPARAT

PIN - yoke lock (Order 613867R11 pin assembly)

1шт.

19371R1

PIN,1/8" x 3/4", Coiled

1шт.

10

613868R1

SPRING

- lock pin

1шт.

11

568100R93

FORK

YOKE ASSEMBLY - quick detachable (Replaces 613897R92 yoke assembly)

1шт.

12

1960424C1

PIN

ASSEMBLY - locking (Replaces 455346R21)

1шт.

13

1960425C1

SPRING

- lock pin (Replaces 455347R1)

1шт.

14

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- X, lock pin

1шт.

15

820252C2

SHIELD

- outer (Machines built prior to 1987, order 1960613C1 shield)

1шт.

15

1960613C1

SHIELD

- outer (Machines built 1987 and after)

1шт.

16

599640R1

KIT

BEARING KIT - shield (Use with 820252c2 shield)

1шт.

16

1326581C1

COLLAR

BEARING - shield, nylon (Use with 1960613C1 shield)

2шт.

17

820197C92

JOINT

ASSEMBLY - universal, rear half

1шт.

18

820396C1

YOKE

- with tube

1шт.

19

753772

KIT

CROSS ASSEMBLY - center (Replaces 667558R91)

1шт.

20

NSS

NOT SOLD SEPARAT

CROSS - center (Order 753772 cross assembly)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

21

NSS

NOT SOLD SEPARAT

BEARING - center cross (Order 753772 cross assembly)

4шт.

22

667561R1

RING

- retaining, internal

4шт.

23

820582C1

YOKE

- with keyway

1шт.

24

822484C1

COLLAR

- shield support

1шт.

25

820591C1

SHIELD

- inner (Machines built, Serial Range: prior-1987)

1шт.

25

1969061C1

SHIELD

- inner (Machines built 1987 and after)

1шт.

26

599640R1

KIT

BEARING KIT - shield (Use with 820591C1 shield)

1шт.

26

1326581C1

COLLAR

BEARING - shield, nylon (Use with 1969061C1 shield)

2шт.
