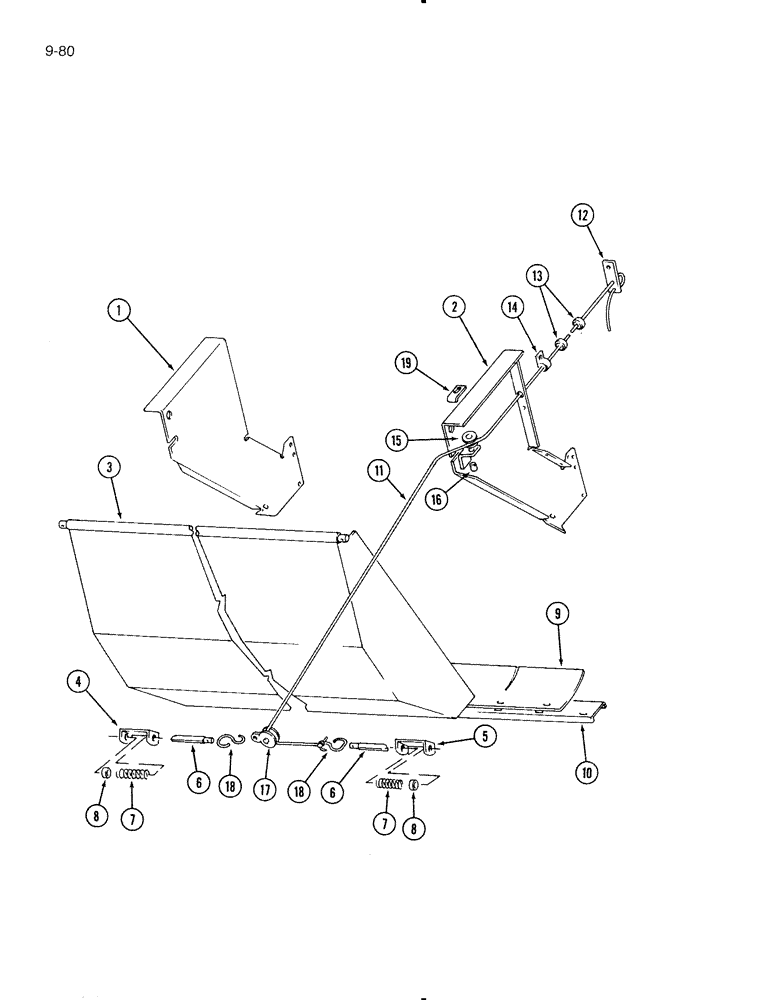

Запчасти Case IH 595 (9-80) - SLURRY PAN (09) - CHASSIS/ATTACHMENTS

1

822352C1

SUPPORT

- slurry pan, left

1шт.

2

822401C1

SUPPORT

ASSEMBLY - slurry pan, right

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

14шт.

425-106

NUT,3/8"-16, Cl 5

14шт.

3

822393C1

PAN

ASSEMBLY - slurry

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

1шт.

4

822360C1

BRACKET

- slurry pan latch, left

1шт.

5

822361C1

BRACKET

- slurry pan latch, right

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

6

592455R1

LATCH

- slurry pan

2шт.

432-1216

COTTER PIN,3/16" x 1"

3шт.

7

592456R1

SPRING

- latch, slurry pan

2шт.

8

591046R1

SPACER

- 3/4 x 3/8 inch

2шт.

9

822365C1

COVER

- slurry pan bottom

1шт.

10

822362C1

CHANNEL

- cover, pan bottom

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

7шт.

492-11038

LOCK WASHER,3/8"

7шт.

425-106

NUT,3/8"-16, Cl 5

7шт.

11

ROPE - slurry pan control, 1/4 x 530 inch, nylon braided

1шт.

12

820586C1

STRIP

- rope guide, front

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

13

117963

GROMMET,1/2" ID x 1 1/16" x .062"

- rubber, 1/2 x 1-1/16 x 5/16 inch

2шт.

14

820597C2

GUIDE

- rope (For use with upper beater)

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

15

820652C1

PULLEY

- control rope

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

16

561277R1

SPACER,5/8" Tube x 1/2"

BUSHING - pulley

1шт.

17

819043C91

PULLEY

- control rope

1шт.

18

822534C1

HOOK

- latch

2шт.

19

820651C1

ANGLE

- rope guide

1шт.
