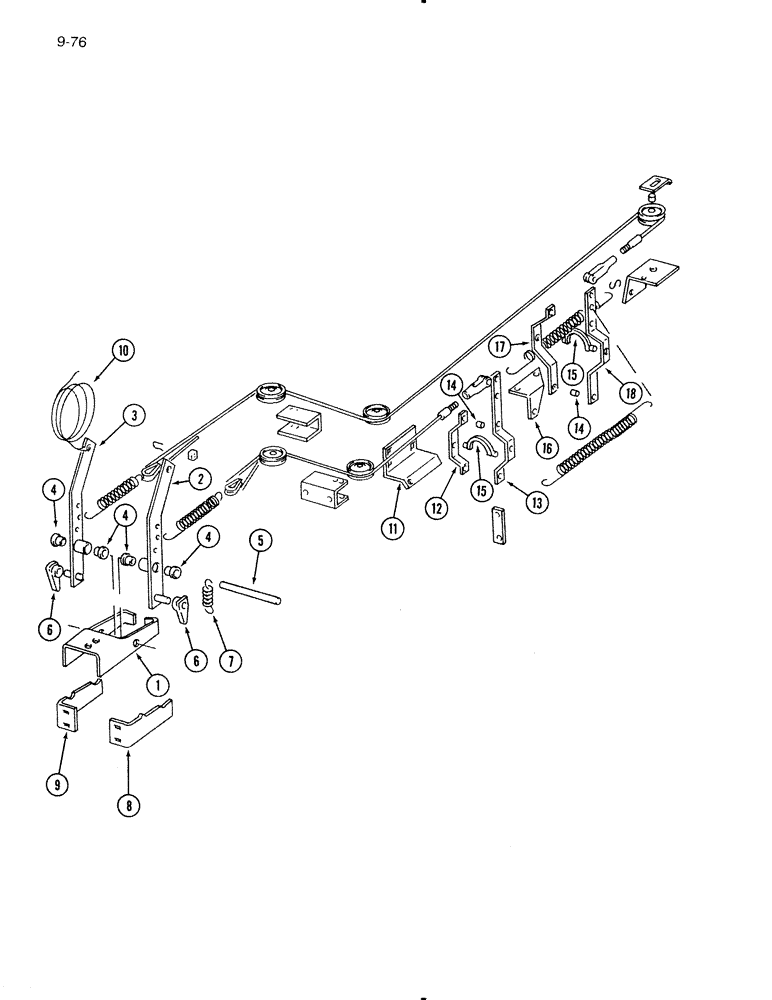

Запчасти Case IH 595 (9-76) - APRON AND BEATER CONTROLS (09) - CHASSIS/ATTACHMENTS

1

820486C2

CHANNEL

- support, lever pivot pin

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

2

822508C1

LEVER

ASSEMBLY - apron drive control

1шт.

3

822509C1

LEVER

ASSEMBLY - widespread drive control

1шт.

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

4шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

4

820317C1

BUSHING

- lever pivot

4шт.

5

820489C1

PIN

- lever pivot

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

6

820343C1

PAWL

- control lever sector

2шт.

7

34A

SPRING

- pawl

2шт.

8

822512C1

SECTOR

- apron drive control lever

1шт.

9

822511C1

SECTOR

- widespread drive control lever

1шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

4шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

10

ROPE - lever control, 1/4 x 144 inch, nylon braided

1шт.

11

822190C3

SUPPORT

- apron clutch control, rear

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

3шт.

492-11038

LOCK WASHER,3/8"

3шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

12

820326C1

CLAMP

- retaining, shifter fork

1шт.

13

822231C1

LEVER

- apron drive clutch control

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex, 1/4 NC x 7/8 inch

1шт.

495-51028

WASHER,0.28" ID x 0.73" OD x 0.06" Thk

- flat, 9/32 x 47/64 x 1/16 inch

1шт.

495-81105

WASHER,.281" x 3/4" x .120"

- flat, 9/32 x 3/4 x 7/64 inch

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex, flange lock, 1/4 inch NC

2шт.

14

820520C1

SPACER

- lever pivot

2шт.

495-51028

WASHER,0.28" ID x 0.73" OD x 0.06" Thk

- flat, 9/32 x 47/64 x 1/16 inch

1шт.

15

820333C1

FORK

- clutch shifter

2шт.

21118R1

LUBE NIPPLE,1/8" x .47" lg, Drive

FITTING - straight, drive type, 1/8 inch

2шт.

16

820323C2

SUPPORT

- widespread clutch control

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

17

820325C1

CLAMP

- retaining, shifter fork

1шт.

18

822513C1

LEVER

- widespread, drive clutch control

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex, 1/4 NC x 7/8 inch

1шт.

495-51028

WASHER,0.28" ID x 0.73" OD x 0.06" Thk

- flat, 9/32 x 47/64 x 1/16 inch

1шт.

495-81105

WASHER,.281" x 3/4" x .120"

- flat, 9/32 x 3/4 x 7/64 inch

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex, flange lock, 1/4 inch NC

2шт.

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
