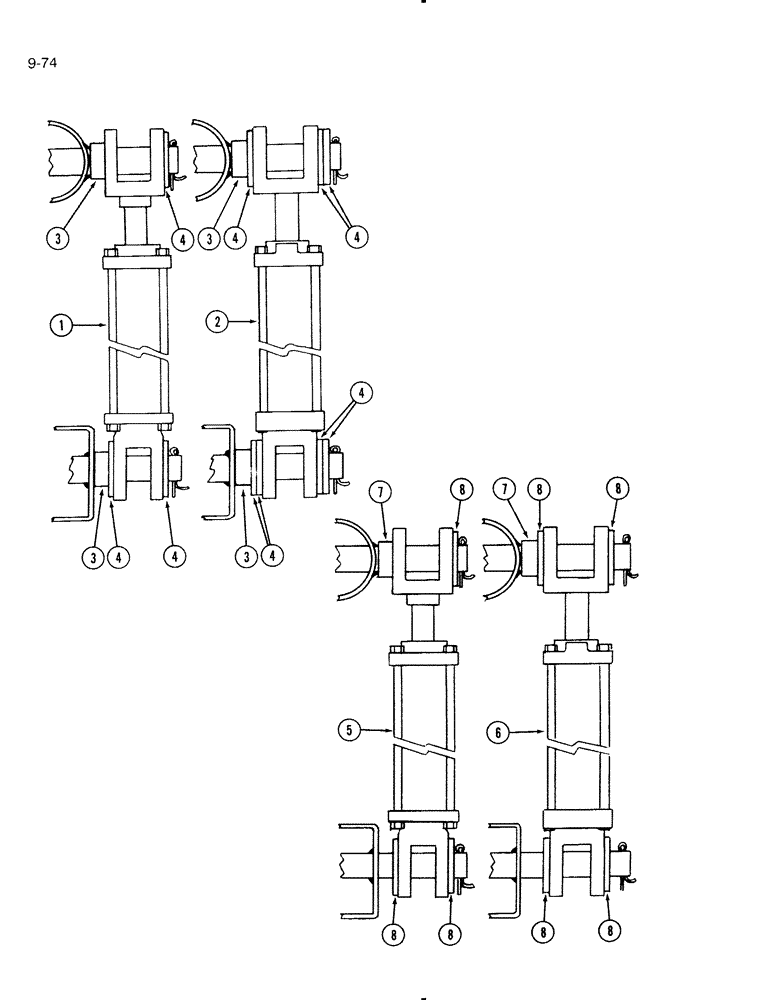

Запчасти Case IH 595 (9-74) - MOUNTING SPACERS FOR END GATE HYDRAULIC CYLINDERS, MACHINES BUILT BETWEEN 1978 AND 1979 (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - end gate (Alco, see page 8-5), Years: 01-JAN-78-31-DEC-79

2шт.

32-1628

COTTER PIN,1/4" x 1 3/4"

PIN, SPLIT (COTTER), 1/4" x 1 3/4", Years: 01-JAN-78-31-DEC-79

4шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - end gate (Prince, see page 8-7), Years: 01-JAN-78-31-DEC-79

2шт.

32-1628

COTTER PIN,1/4" x 1 3/4"

PIN, SPLIT (COTTER), 1/4" x 1 3/4", Years: 01-JAN-78-31-DEC-79

4шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - end gate (IH, see page 8-9), Years: 01-JAN-78-31-DEC-79

2шт.

32-1628

COTTER PIN,1/4" x 1 3/4"

PIN, SPLIT (COTTER), 1/4" x 1 3/4", Years: 01-JAN-78-31-DEC-79

4шт.

3

580342R1

SPACER,1" Pipe x 1/2"

- pipe, 1 x 1/2 inch, Years: 01-JAN-78-31-DEC-79

4шт.

4

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch, Years: 01-JAN-78-31-DEC-79

14шт.

5

REF

INSTRUCTION

CYLINDER ASSEMBLY - end gate (Alco, see page 8-5), machine built 1980 and after, Start Year: 01-JAN-80

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2", Machines built 1980 and after, Start Year: 01-JAN-80

4шт.

6

REF

INSTRUCTION

CYLINDER ASSEMBLY - end gate (Prince, see page 8-7), machines built 1980 and after, Start Year: 01-JAN-80

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2", Machines built 1980 and after, Start Year: 01-JAN-80

4шт.

6

REF

INSTRUCTION

CYLINDER ASSEMBLY - end gate (IH, see page 8-9), machines built 1980 and after, Start Year: 01-JAN-80

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2", Machines built 1980 and after, Start Year: 01-JAN-80

4шт.

7

580342R1

SPACER,1" Pipe x 1/2"

- pipe, 1 x 1/2 inch, machines built 1980 and after, Start Year: 01-JAN-80

2шт.

8

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch, machines built 1980 and after, Start Year: 01-JAN-80

18шт.
