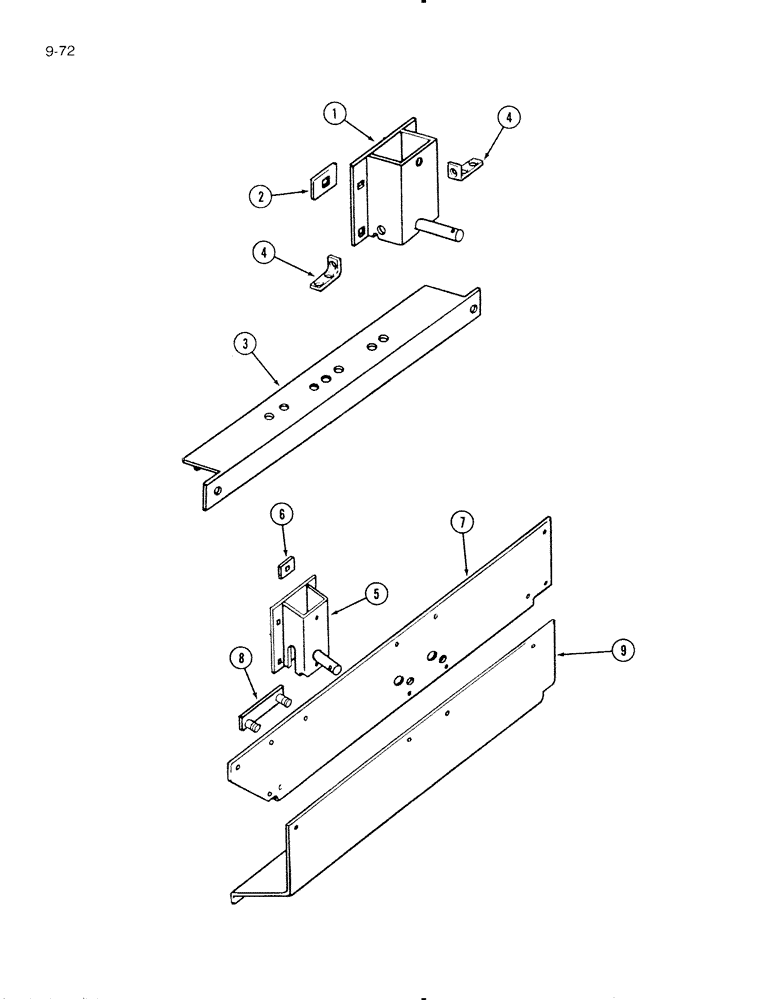

Запчасти Case IH 595 (9-72) - END GATE HYDRAULIC SUPPORTS AND REAR DRIVE SHAFT SHIELD, MACHINES BUILT BETWEEN 1978 AND 1979 (09) - CHASSIS/ATTACHMENTS

1

822266C1

SUPPORT

ASSEMBLY - hydraulic cylinder, Years: 01-JAN-78-31-DEC-79

2шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd, Years: 01-JAN-78-31-DEC-79

8шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

, Years: 01-JAN-78-31-DEC-79

2шт.

492-11038

LOCK WASHER,3/8"

, Years: 01-JAN-78-31-DEC-79

10шт.

425-106

NUT,3/8"-16, Cl 5

, Years: 01-JAN-78-31-DEC-79

8шт.

2

594410R2

BAR

- support reinforcing, Years: 01-JAN-78-31-DEC-79

8шт.

3

822491C1

SUPPORT

- cylinder channel, right, Years: 01-JAN-78-31-DEC-79

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch, Years: 01-JAN-78-31-DEC-79

5шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Years: 01-JAN-78-31-DEC-79

2шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64", Years: 01-JAN-78-31-DEC-79

1шт.

492-11038

LOCK WASHER,3/8"

, Years: 01-JAN-78-31-DEC-79

7шт.

425-106

NUT,3/8"-16, Cl 5

, Years: 01-JAN-78-31-DEC-79

7шт.

4

822507C1

ANGLE

- cylinder support, right, Years: 01-JAN-78-31-DEC-79

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch, Years: 01-JAN-78-31-DEC-79

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Years: 01-JAN-78-31-DEC-79

4шт.

492-11038

LOCK WASHER,3/8"

, Years: 01-JAN-78-31-DEC-79

6шт.

425-106

NUT,3/8"-16, Cl 5

, Years: 01-JAN-78-31-DEC-79

6шт.

5

822249C1

SUPPORT

ASSEMBLY - hydraulic cylinder, mach. built 1980 and after, Start Year: 01-JAN-80

2шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, , Machine built 1980 and after Short NK, 3/8"-16 x 1 1/4", G5, Full Thd, Start Year: 01-JAN-80

8шт.

492-11038

LOCK WASHER,3/8"

machine built 1980 and after 3/8", Start Year: 01-JAN-80

8шт.

425-106

NUT,3/8"-16, Cl 5

Machine built 1980 and after 3/8"-16, G5, Start Year: 01-JAN-80

8шт.

6

594410R2

BAR

- support reinforcing, machine built 1980 and after, Start Year: 01-JAN-80

8шт.

7

822246C1

SUPPORT

- cylinder reinforcement, left, machine built 1980 and after, Start Year: 01-JAN-80

1шт.

7

822248C1

SUPPORT

- cylinder reinforcement, right, machine built 1980 and after, Start Year: 01-JAN-80

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Machine built 1980 and after, Start Year: 01-JAN-80

12шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch, machine built 1980 and after, Start Year: 01-JAN-80

10шт.

492-11038

LOCK WASHER,3/8"

machine built 1980 and after 3/8", Start Year: 01-JAN-80

22шт.

425-106

NUT,3/8"-16, Cl 5

Machine built 1980 and after 3/8"-16, G5, Start Year: 01-JAN-80

18шт.

8

822201C1

BAR

ASSEMBLY - reinforcing support, machine built 1980 and after, Start Year: 01-JAN-80

2шт.

492-11038

LOCK WASHER,3/8"

machine built 1980 and after 3/8", Start Year: 01-JAN-80

4шт.

425-106

NUT,3/8"-16, Cl 5

Machine built 1980 and after 3/8"-16, G5, Start Year: 01-JAN-80

4шт.

9

822259C1

SHIELD

- drive shaft, left, machine built 1980 and after, Start Year: 01-JAN-80

1шт.

498-81002

SQ HOLE WASHER,13/32" x 3/4" x .060", Sq Hole

- square hole, 13/32 x 3/4 x 1/16 inch, machine built 1980 and after, Start Year: 01-JAN-80

3шт.

492-11038

LOCK WASHER,3/8"

machine built 1980 and after 3/8", Start Year: 01-JAN-80

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Machine built 1980 and after Hex, 3/8"-16 x 3/4", G5, Full Thd, Start Year: 01-JAN-80

2шт.
