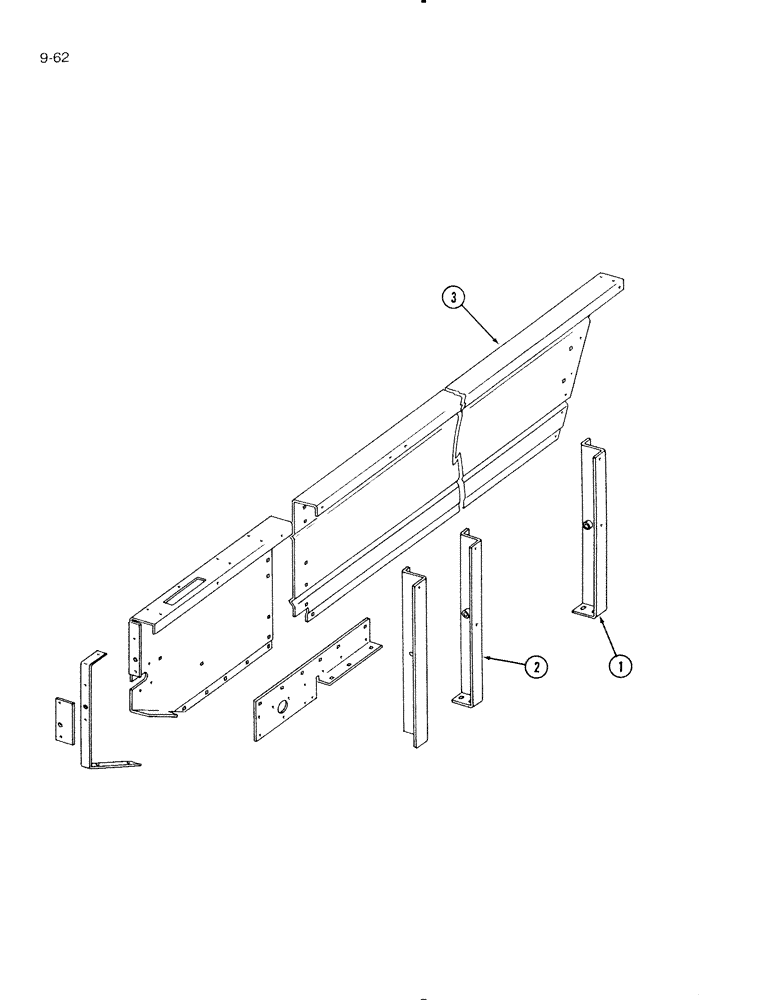

Запчасти Case IH 595 (9-62) - BOX SIDE, RIGHT (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
822475C2
SUPPORT
- vertical, front, right, 575 Spreaders
2шт.
2
822473C1
SUPPORT
- vertical, center, right, 575 Spreaders
1шт.
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - round head square neck, 3/8 NC x 1 inch, 575 spreader
8шт.
492-11038
LOCK WASHER,3/8"
575 spreader 3/8"
8шт.
425-106
NUT,3/8"-16, Cl 5
575 spreader 3/8"-16, G5
8шт.
3
822344C1
PANEL
SIDE - box, right, 575 spreader
1шт.
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - round head square neck, 3/8 NC x 1 inch, 575 spreader
6шт.
434-612
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
BOLT - round head square neck, 3/8 NC x 3/4 inch, 575 spreader
4шт.
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
575 spreader Hex, 3/8"-16 x 3/4", G5, Full Thd
2шт.
495-61041
WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk
575 spreader 3/8" x 1" x .063"
2шт.
492-11038
LOCK WASHER,3/8"
575 spreader 3/8"
12шт.
425-106
NUT,3/8"-16, Cl 5
575 spreader 3/8"-16, G5
12шт.
1
822475C2
SUPPORT
- vertical, front, right, 595 Spreaders
3шт.
2
822473C1
SUPPORT
- vertical, center, right, 595 Spreaders
1шт.
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - round head square neck, 3/8 NC x 1 inch, 595 spreader
11шт.
492-11038
LOCK WASHER,3/8"
595 spreader 3/8"
11шт.
425-106
NUT,3/8"-16, Cl 5
595 spreader 3/8"-16, G5
11шт.
3
822168C1
SIDE ASSY.
SIDE - box, right, 595 spreader
1шт.
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - round head square neck, 3/8 NC x 1 inch, 595 spreader
9шт.
434-612
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
BOLT - round head square neck, 3/8 NC x 3/4 inch, 595 spreader
6шт.
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
595 spreader Hex, 3/8"-16 x 3/4", G5, Full Thd
3шт.
495-61041
WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk
595 spreader 3/8" x 1" x .063"
3шт.
492-11038
LOCK WASHER,3/8"
595 spreader 3/8"
18шт.
425-106
NUT,3/8"-16, Cl 5
595 spreader 3/8"-16, G5
18шт.
Выбрано товаров: 24
