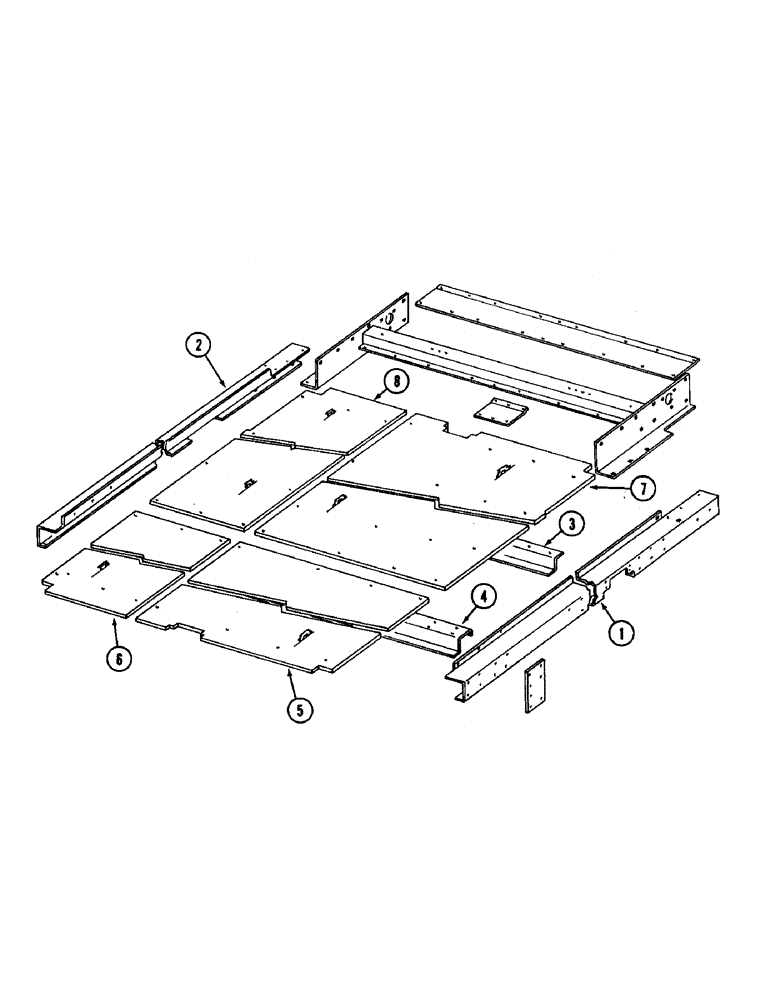

Запчасти Case IH 595 (9-56) - BOTTOM BOX, 575 SPREADER (09) - CHASSIS/ATTACHMENTS

1

822345C2

MEMBER

- bottom side support, left, 575 Spreader

1шт.

2

822346C2

MEMBER

- bottom side support, right, 575 Spreader

1шт.

3

822380C1

MEMBER

CROSSMEMBER - box bottom, 575 spreader

4шт.

4

822213C1

MEMBER

CROSSMEMBER - box bottom, 575 spreader

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch, 575 spreader

12шт.

492-11038

LOCK WASHER,3/8"

575 spreader 3/8"

12шт.

425-106

NUT,3/8"-16, Cl 5

575 spreader 3/8"-16, G5

12шт.

5

822436C1

BOARD

- box bottom front, left, 575 spreader

1шт.

6

822438C1

BOARD

- box bottom front, right, 575 spreader

1шт.

7

822432C1

BOARD

- box bottom rear, left, 575 spreader

1шт.

8

822434C1

BOARD

- box bottom rear, right, 575 spreader

1шт.

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 1-1/2 inch, 575 spreader

49шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC, 575 spreader

49шт.

1

822176C2

MEMBER

- bottom side support, left, 595 Spreader

1шт.

2

822177C2

MEMBER

- bottom side support, right, 595 Spreader

1шт.

3

822380C1

MEMBER

CROSSMEMBER - box bottom, 595 spreader

7шт.

4

822213C1

MEMBER

CROSSMEMBER - box bottom, 595 spreader

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch, 595 spreader

18шт.

492-11038

LOCK WASHER,3/8"

595 spreader 3/8"

18шт.

425-106

NUT,3/8"-16, Cl 5

595 spreader 3/8"-16, G5

18шт.

5

822435C1

BOARD

- box bottom front, left, 595 spreader

1шт.

6

822437C1

BOARD

- box bottom front, right, 595 spreader

1шт.

7

822432C1

BOARD

- box bottom rear, left, 595 spreader

1шт.

8

822434C1

BOARD

- box bottom rear, right, 595 spreader

1шт.

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 1-1/2 inch, 595 spreader

70шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC, 595 spreader

70шт.
