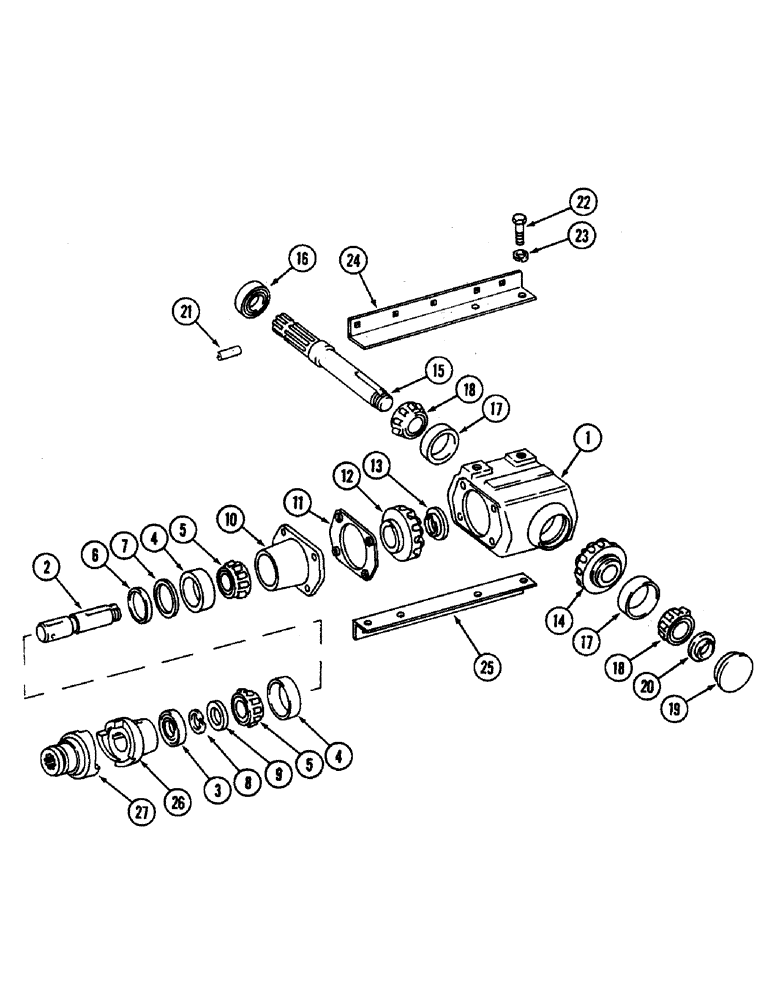

Запчасти Case IH 595 (9-54) - WIDESPREAD DRIVE GEAR CASE, CLUTCH AND SUPPORT (09) - CHASSIS/ATTACHMENTS

820215C92

CASE

ASSEMBLY - widespread drive gear

1шт.

1

820212C1

CASE

- widespread drive gear

1шт.

684183R1

PLUG

- vent, 1/4 inch PTF

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

- Hex Socket, 1/4 inch PTF

2шт.

2

820201C1

SHAFT

- gear case input

1шт.

3

1333952C1

OIL SEAL

- oil, input shaft (Replaces 820202C1)

1шт.

4

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - tapered roller bearing, input shaft

2шт.

5

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - tapered roller bearing, input shaft

2шт.

6

820583C1

SPACER

- input shaft bearing

1шт.

7

820204C1

RING

- bearing retaining

1шт.

8

609053R1

SNAP RING,#125, Ext

Ring, Snap, , bearing #125, Ext

1шт.

9

820203C1

WASHER

- bearing spacer

1шт.

10

820205C1

RETAINER

- input shaft bearing

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

11

820206C1

SHIM

- bearing retainer, 0.010 inch

1шт.

11

820207C1

SHIM

- bearing retainer, 0.005 inch

1шт.

11

820208C1

SHIM

- bearing retainer, 0.003 inch

1шт.

12

820210C1

GEAR

- 14 tooth, bevel, input shaft

1шт.

Q1482

KEY,5/16" Sq x 1", Par

- square, parallel, 5/16 x 1 inch

1шт.

13

594436R1

NUT

- lock, input shaft

1шт.

14

820211C1

GEAR

- 14 tooth, bevel, output shaft

1шт.

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

15

820214C2

SHAFT

- gear case output

1шт.

16

820213C1

OIL SEAL

SEAL - oil, gear case output shaft

1шт.

17

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - tapered roller bearing, output shaft

2шт.

18

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - tapered roller bearing, output shaft

2шт.

19

594434R1

CAP

PLUG - gear case housing

1шт.

20

594436R1

NUT

- lock, output shaft

1шт.

21

19998R1

PIN,1/2" x 2 1/2", Coiled

1шт.

22

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

822191C1

ANGLE

- drive gear case support, upper

1шт.

25

822192C1

ANGLE

- drive gear case support, lower

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

5шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

9шт.

425-106

NUT,3/8"-16, Cl 5

9шт.

26

820235C1

SPLINED COUPLING

CLUTCH - Has Keyway And Smooth Bore

1шт.

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

- Woodruff, 5/16 x 1 inch

1шт.

617943R1

PIN,5/16" x 2 1/2", Coiled

1шт.

ref #26 and #27. the description fo #26 and #27 are

1шт.

reversed. part number 821200c1 is the wijdespread drive, pinion with internal splines. part number 820235c1 is the widespread drive, sliding.jcl

1шт.

27

821200C1

CLUTCH

Clutch Drive - Has Splines

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

1шт.

495-81084

WASHER,1.16" ID x 1.5" OD x 0.06" Thk

- flat, 1-5/32 x 1-1/2 inch x 3/64 inch

1шт.
