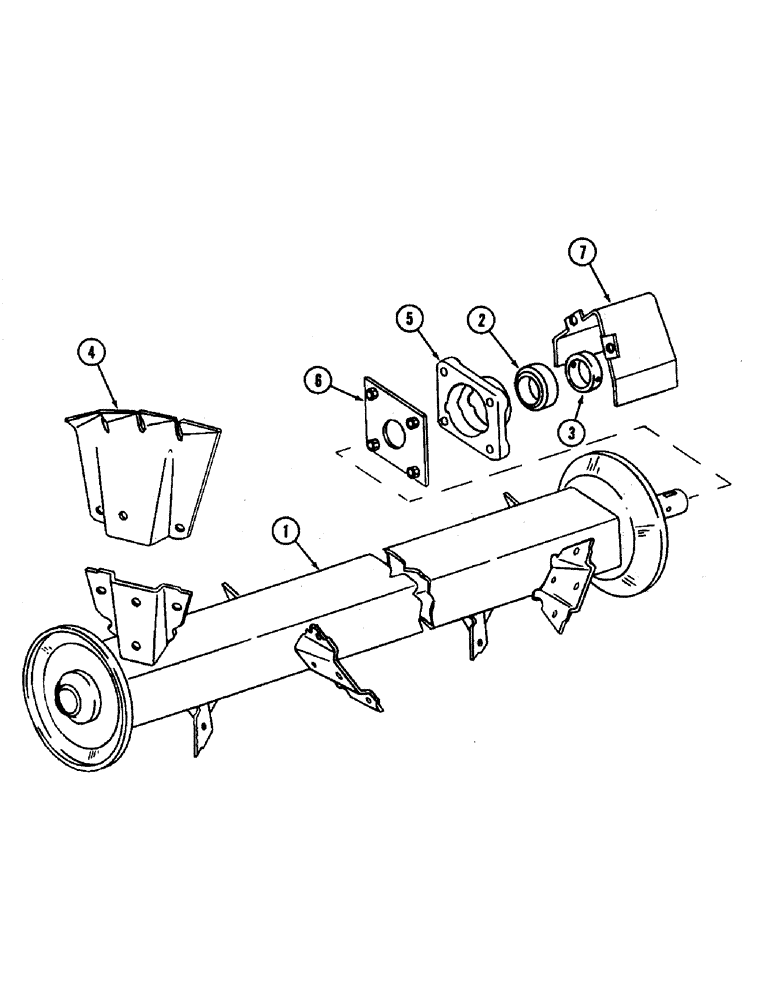

Запчасти Case IH 595 (9-52) - WIDESPREAD (09) - CHASSIS/ATTACHMENTS

1

822244C1

ROTATOR

WIDESPREAD ASSEMBLY

1шт.

2

1414239R91

BALL BEARING

ASSEMBLY - widespread shaft

1шт.

3

REF

INSTRUCTION

COLLAR ASSEMBLY - bearing locking (Order 517645R11 collar assembly)

1шт.

84-55

SET SCREW,Hex Soc, 5/16"-24 x 5/16"

- hex socket set, 5/16 NC x 5/16 inch

1шт.

3

517645R11

COLLAR

ASSEMBLY - bearing locking

1шт.

83-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - hex socket head, 3/8 NC x 3/8 inch

1шт.

4

820471C1

PLATE

- widespread, left

10шт.

4

820472C1

PLATE

- widespread, right

10шт.

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, Grade 8

40шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

40шт.

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, Grade 8

40шт.

5

820356C1

HOUSING

- bearing

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

6

820363C1

BAR

ASSEMBLY - bearing housing support

1шт.

7

821797C1

SHIELD

- widespread shaft, right (Not for use with upper beater attachment)

1шт.
