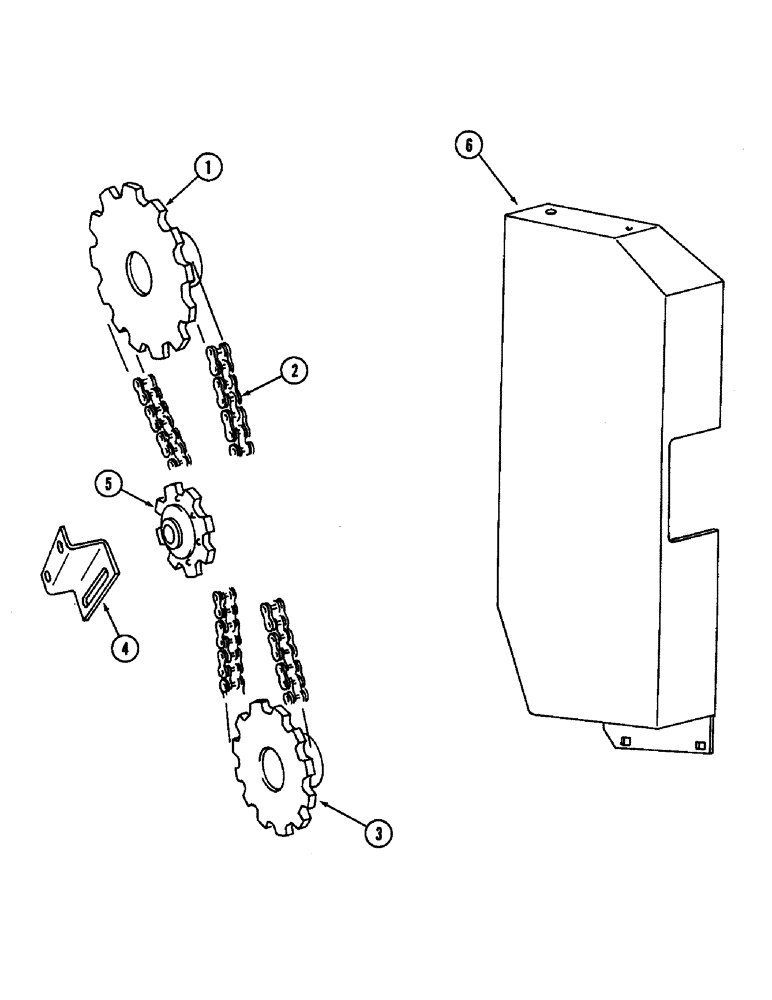

Запчасти Case IH 595 (9-50) - UPPER BEATER DRIVE AND SHIELD (09) - CHASSIS/ATTACHMENTS

1

593080R2

SPROCKET ASSY.

SPROCKET - 12 tooth, beater drive

1шт.

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

22337R1

PIN,1/4" x 2 1/2", Coiled

1шт.

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-13/32 x 2 x 1/16 inch

2шт.

2

CHAIN ASSEMBLY - upper beater drive (Machines built between 1978 and 1979)

1шт.

569090R91

CHAIN (AG)

CHAIN - roller, 1-1/2 inch pitch x 10 foot roll (Use 45 links)

1шт.

587368R91

CHAIN LINK

LINK - connecting

1шт.

567009R91

CHAIN LINK

LINK - offset

1шт.

2

CHAIN ASSEMBLY - upper beater drive (Machines built 1980 and after)

1шт.

569090R91

CHAIN (AG)

CHAIN - roller, 1-1/2 inch pitch x 10 foot roll (Use 45 links)

1шт.

587368R91

CHAIN LINK

LINK - connecting

1шт.

3

593080R2

SPROCKET ASSY.

SPROCKET - 12 tooth, beater driven

1шт.

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

22337R1

PIN,1/4" x 2 1/2", Coiled

1шт.

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-13/32 x 2 x 1/16 inch

6шт.

4

822330C1

BRACKET

- chain tightener support

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

5

569065R91

SPROCKET ASSY.

SPROCKET - 7 tooth, chain tightener

1шт.

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT - round head square neck, 5/8 NC x 2 inch

1шт.

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1/16 inch

1шт.

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

- square hole, 21/32 x 1-1/2 x 3/32 inch

2шт.

425-1010

NUT,5/8"-11, G5

1шт.

6

822320C1

SHIELD

ASSEMBLY - upper beater drive

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

492-11038

LOCK WASHER,3/8"

3шт.

425-106

NUT,3/8"-16, Cl 5

2шт.
