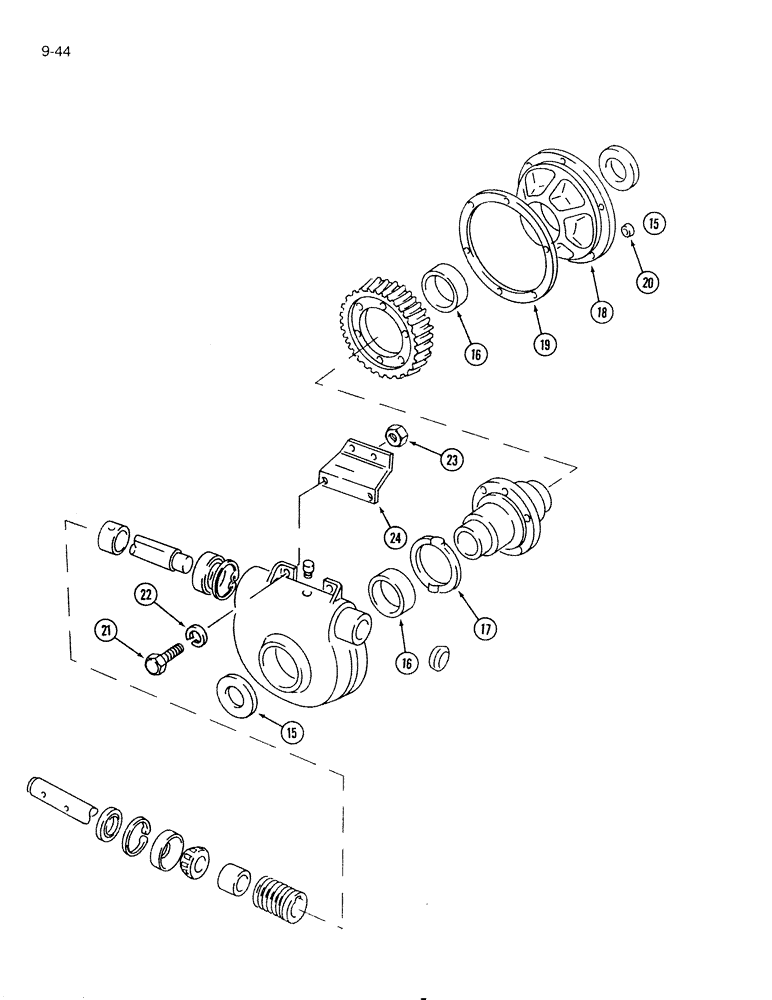

Запчасти Case IH 595 (9-44) - APRON DRIVE GEAR CASE AND SUPPORT, CASE ASSEMBLY, APRON DRIVE GEAR, CONTINUED FROM PREVIOUS PAGE (09) - CHASSIS/ATTACHMENTS

15

822252C1

OIL SEAL

- oil, apron gear

2шт.

16

822525C1

BUSHING

- apron drive gear

2шт.

17

822526C1

THRUST WASHER

- thrust, apron drive gear

1шт.

18

822598C1

COVER

- gear case

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

19

822430C2

GASKET

- gear case cover

1шт.

20

37564HA

WASHER

- gasket

1шт.

21

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

24

822195C1

SUPPORT

- drive gear case

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.
