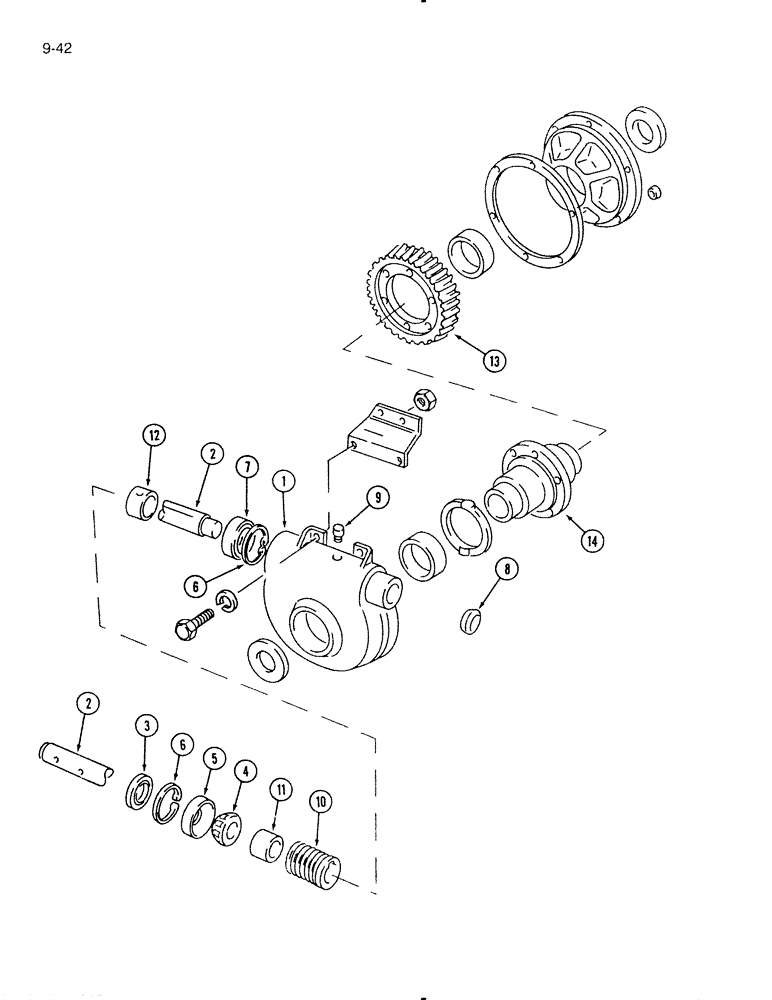

Запчасти Case IH 595 (9-42) - APRON DRIVE GEAR CASE AND SUPPORT (09) - CHASSIS/ATTACHMENTS

822596C93

CASE ASSY.

CASE ASSEMBLY - apron drive gear, with 13 inch input shaft (Machines built between 1978 and 1979, order 822273C93 case assembly and 822595C1 input shaft)

1шт.

822273C93

CASE ASSY.

CASE ASSEMBLY - apron drive gear, with 14-3/4 inch input shaft (Machines built 1980 and after)

1шт.

1

822597C2

CASE

- apron drive gear

1шт.

2

822595C1

SHAFT

- gear case input, 13 inch (Machines built between 1978 and 1979, not part of 822273C93 case assembly)

1шт.

2

822223C1

SHAFT

- gear case input, 14-3/4 inch (Machines built 1980 and after)

1шт.

3

820225C1

SEAL

- input shaft

1шт.

4

594446R91

ROLLER BEARING

CONE - taper roller bearing, input shaft, front

1шт.

5

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP - taper roller bearing, input shaft, front

1шт.

6

641207R1

SNAP RING,2.44", Int, #244

Ring, Snap, , brg 2.44", Int, #244

2шт.

7

609654R91

BEARING, BALL,25mm ID x 62mm OD x 17mm W

BEARING - input shaft, rear

1шт.

8

594434R1

CAP

PLUG - gear case housing

1шт.

9

684183R1

PLUG

- vent, 1/4 inch NPTF (Machines built between 1978 and 1979, not part of 822273C93 case assembly)

1шт.

9

684184R1

PLUG

- vent, 3/8 inch NPTF (Machines built 1980 and after)

1шт.

10

822594C2

GEAR

- worm, apron drive

1шт.

Q20

KEY,1/4" Sq x 2 1/8", Par

- square, parallel, 1/4 x 2-1/8 inch

1шт.

11

822494C1

BUSHING

- worm gear, front

1шт.

12

822493C1

BUSHING

- worm gear, rear

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

13

822599C1

GEAR

- 50 tooth, apron drive, with 3/8 inch holes (Not part of 822273C93 case assembly, order 822193c1 gear, see Note A)

1шт.

13

822193C1

GEAR

- 50 tooth, apron drive, with 1/2 inch holes (Replaces 822599C1 gear with 3/8 inch holes)

1шт.

14

822212C1

HUB

- apron drive gear, with 3/8 inch holes (Not part of 822273C93 case assembly, order 822194C1 hub, see Note B)

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

14

822194C1

HUB

- apron drive gear, with 1/2 inch holes (Replaces 822212C1 hub with 3/8 inch holes)

1шт.

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.
