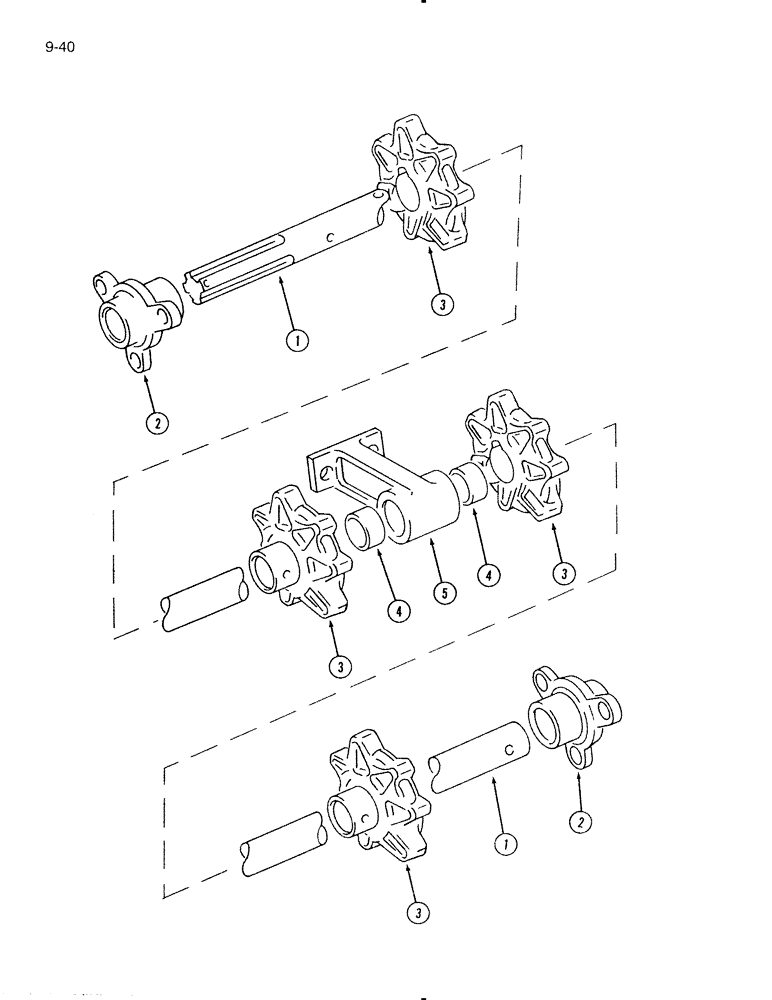

Запчасти Case IH 595 (9-40) - REAR (09) - CHASSIS/ATTACHMENTS

1

822424C1

SHAFT

- rear apron

1шт.

Q75

KEY - square, parallel, 3/8 x 4 inch 3/8" Sq x 4", Par

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/64 inch

1шт.

2

822209C1

HOUSING,38.252 mm ID x 56 mm OD x 62.23 mm

BEARING - apron shaft

2шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap, 1/8 PT x 5/8 inch

2шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

3

822211C1

SPROCKET ASSY.

SPROCKET - 6 tooth, rear apron

4шт.

553110R1

LOCK PIN,5/16" x 2 3/4", Slotted

Pin, 5/16" x 2 3/4", Slotted

4шт.

822514C1

KEY

- square, parallel, 3/18 x 13/32

4шт.

4

822426C1

SPACER

- sprocket

2шт.

5

822210C1

SUPPORT

- apron shaft, center

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap, 1/8 PT x 5/8 inch

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
