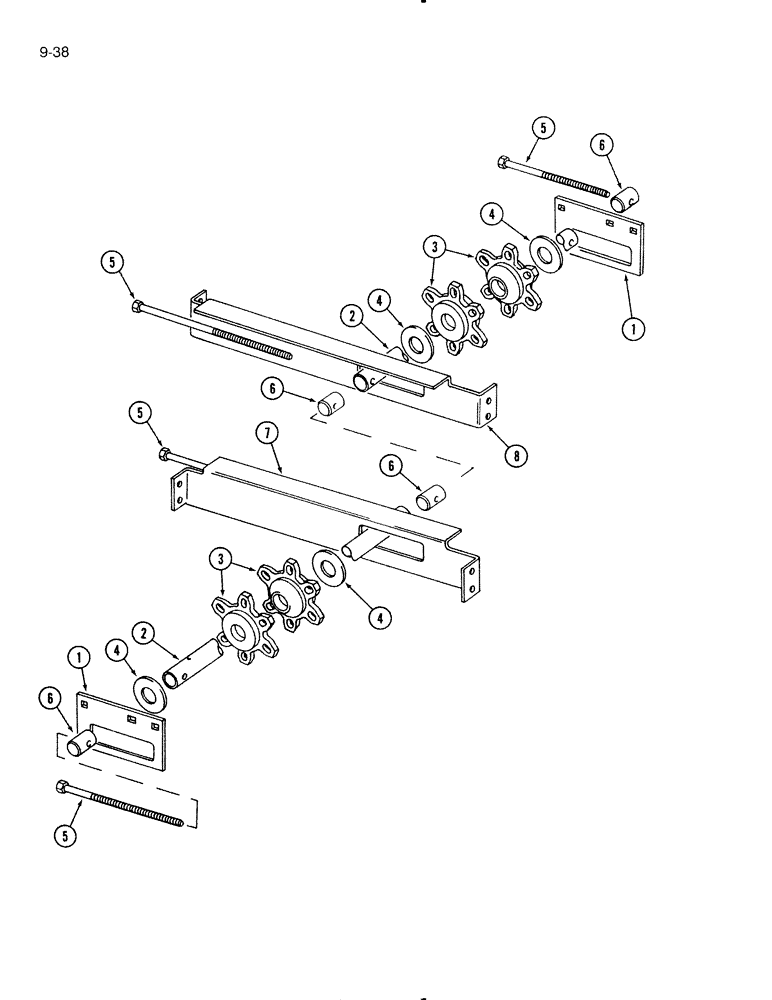

Запчасти Case IH 595 (9-38) - FRONT APRON SHAFT (09) - CHASSIS/ATTACHMENTS

1

822295C1

BAR

- outer support, front apron shaft

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 1-1/2 inch

2шт.

492-11038

LOCK WASHER,3/8"

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

2

822407C1

TUBE,31.75 mm OD, 930 mm Length

- front apron shaft

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

3

820433C1

SPROCKET ASSY.

SPROCKET - 6 tooth, front apron

4шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

4шт.

4

495-81206

WASHER,32.54mm ID x 63.5mm OD x 3.4mm Thk

- plain, 1-9/32 x 2-1/2 x 3/32 inch

10шт.

5

822204C1

BOLT

- apron chain tightener

4шт.

495-81011

WASHER,0.47" ID x 1.25" OD x 0.12" Thk

- flat, 15/32 x 1-1/4 x 1/8 inch

4шт.

6

822163C1

NUT

- tightener bolt

4шт.

7

822160C1

SUPPORT

- apron shaft center, left

1шт.

8

822161C1

SUPPORT

- apron shaft center, right

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

492-11038

LOCK WASHER,3/8"

8шт.

425-106

NUT,3/8"-16, Cl 5

8шт.
