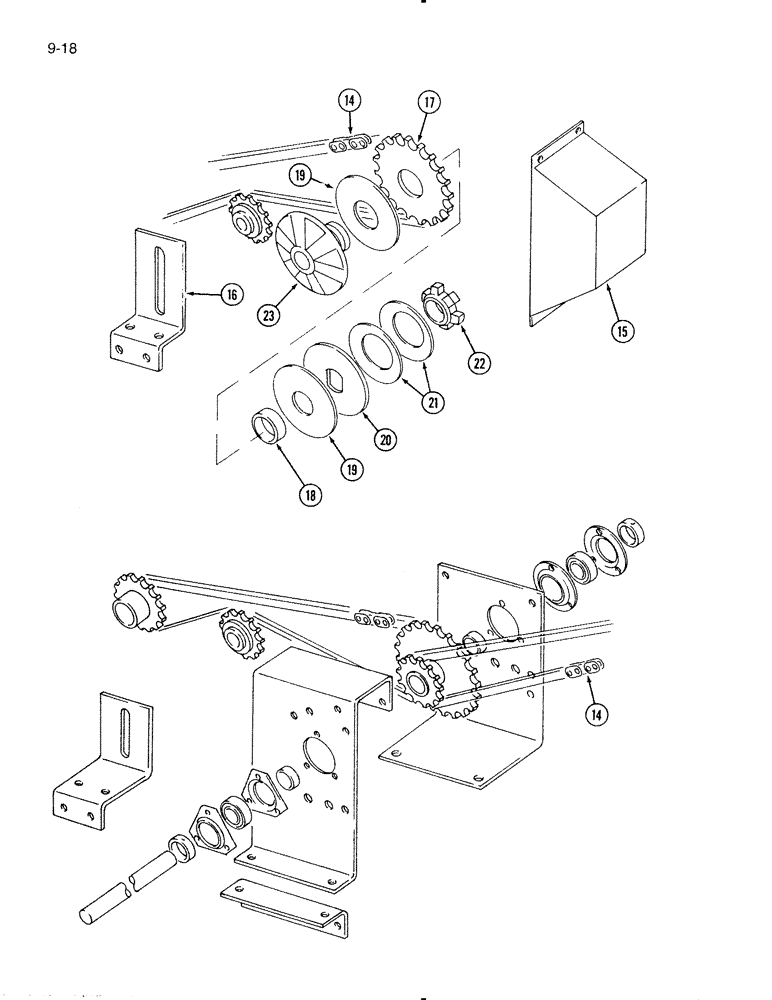

Запчасти Case IH 595 (9-18) - MAIN DRIVE CHAIN AND CLUTCH, 1000 RPM (09) - CHASSIS/ATTACHMENTS

14

CHAIN ASSEMBLY - main drive (continued from previous page)

1шт.

611362R91

CHAIN (AG)

CHAIN - roller, 3/4 inch pitch x 10 foot roll (Use 97 links)

1шт.

611361R91

DRAG LINK

LINK - connecting

1шт.

15

822228C1

SHIELD

ASSEMBLY - clutch

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

16

822128C1

SUPPORT

- main drive chain idler

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

1шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

17

820247C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - 31 tooth, main drive clutch, Includes: Ref. 18

1шт.

18

592954R2

BUSHING

- clutch sprocket

1шт.

19

95909C1

FACING

- clutch (Replaces 592952)

2шт.

20

592955R1

PLATE

- clutch

1шт.

21

820669C1

WASHER

- clutch

3шт.

22

592957R1

COLLAR

- clutch locking

1шт.

23

592951R2

HUB

- clutch

1шт.

T14185

KEY - square, parallel, 1/4 x 2-3/4 inch 1/4" Sq x 2 3/4", Par

1шт.

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1-5/32 x 2 x 3/64 inch

4шт.
