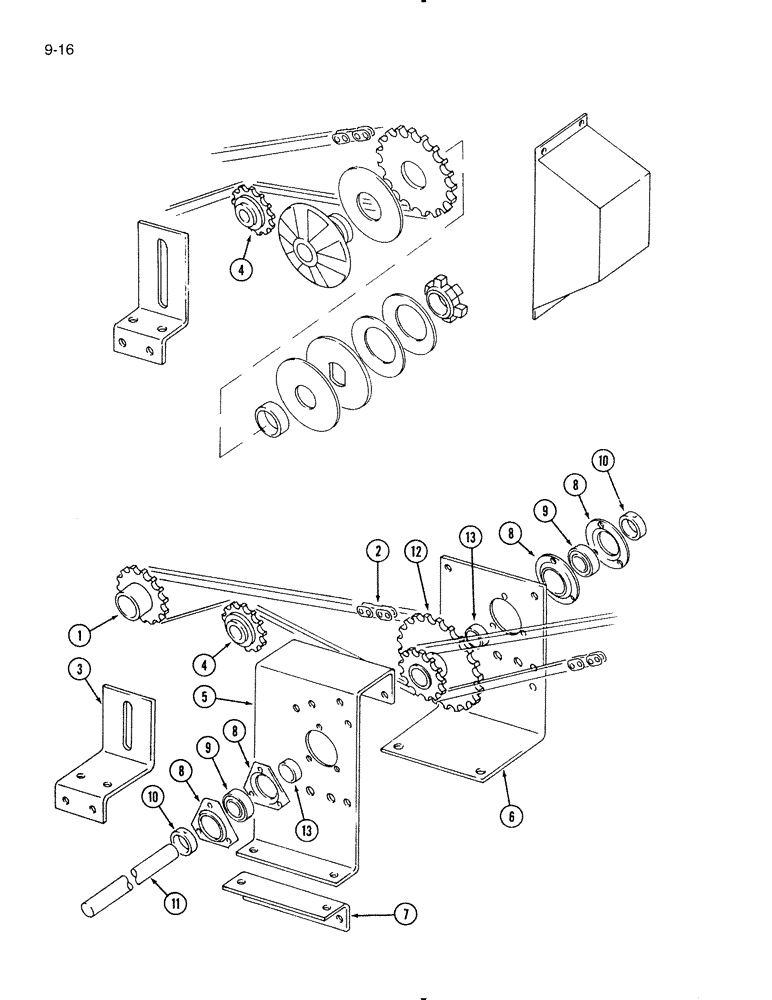

Запчасти Case IH 595 (9-16) - MAIN DRIVE CHAIN AND CLUTCH, 1000 RPM (09) - CHASSIS/ATTACHMENTS

1

822140C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - 18 tooth, main drive (For connecting parts, see page 9-13)

1шт.

Q26

KEY,1/4" Sq x 1 1/4", Par

- square parallel, 1/4 x 1-1/4 inch

1шт.

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1-9/16 x 2 x 3/64 inch

3шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

2

CHAIN ASSEMBLY - drive

1шт.

611362R91

CHAIN (AG)

CHAIN - roller, 3/4 inch pitch x 10 foot roll (Use 65 links)

1шт.

611361R91

DRAG LINK

LINK - connecting

1шт.

3

822129C1

SUPPORT

- drive chain idler

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

492-11038

LOCK WASHER,3/8"

3шт.

425-106

NUT,3/8"-16, Cl 5

3шт.

4

629972R91

DRIVE SPROCKET,15T

SPROCKET - 15 tooth, drive chain idler

2шт.

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - round head square neck, 5/8 NC x 2-1/4 inch

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

- square hole, 21/32 x 1-1/2 x 3/32 inch

1шт.

425-1010

NUT,5/8"-11, G5

2шт.

5

822127C1

SUPPORT

- drive sprocket, front

1шт.

6

822126C1

SUPPORT

- drive sprocket, rear

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

7

822124C1

ANGLE

- front support

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

8

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing

4шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

9

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- shaft, drive sprocket

2шт.

10

557115R11

COLLAR

COLLAR ASSEMBLY - locking

2шт.

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - hex socket set, 5/16 NC x 5/16 inch

2шт.

11

822125C1

SHAFT

- drive sprocket

1шт.

12

822145C1

SPROCKET ASSY.

SPROCKET ASSEMBLY - double drive

1шт.

432-1648

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

13

822147C1

SPACER

- drive sprocket

2шт.
