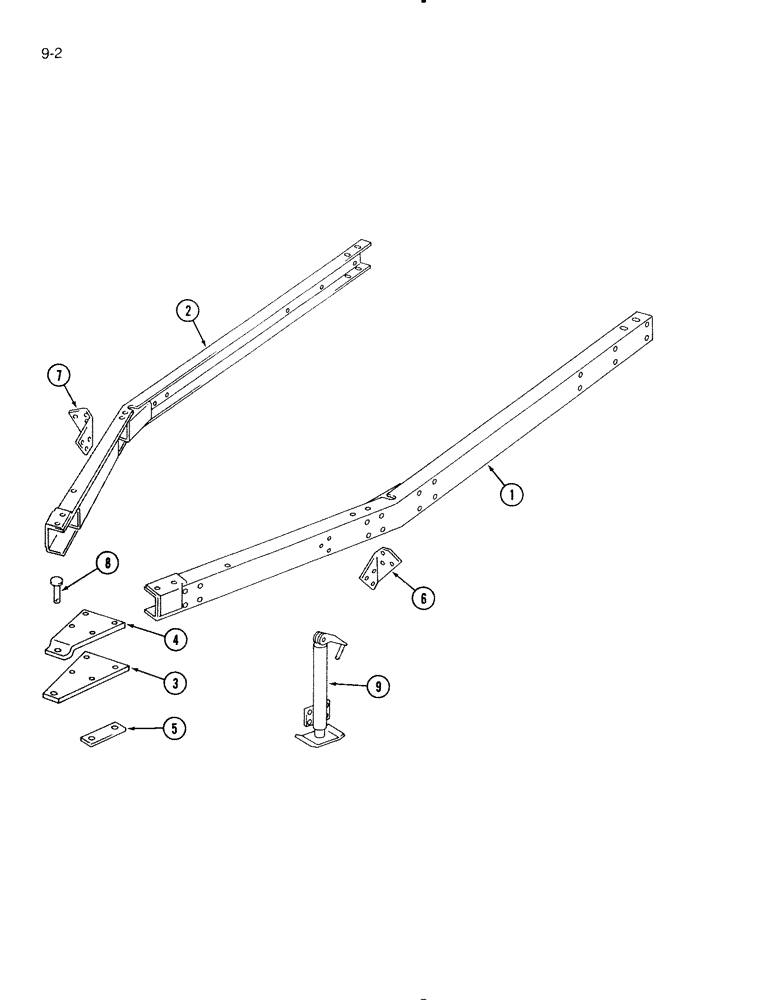

Запчасти Case IH 595 (9-02) - HITCH, 575 SPREADER (09) - CHASSIS/ATTACHMENTS

1

822307C2

TRAILER HITCH

HITCH ASSEMBLY - left, 575 Spreader

1шт.

2

822308C2

TRAILER HITCH

HITCH ASSEMBLY - right, 575 Spreader

1шт.

3

822311C1

PLATE

- hitch, lower, 575 spreader

1шт.

4

822107C1

PLATE

- hitch, clevis, 575 spreader

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch, 575 spreader

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch, 575 spreader

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 575 spreader 5/8"

8шт.

425-1010

NUT,5/8"-11, G5

575 spreader 5/8"-11, G5

8шт.

5

822495C1

BAR

- lower plate spacer, 575 spreader

2шт.

1

822101C2

HITCH ASSY

HITCH ASSEMBLY - left, 595 Spreader

1шт.

2

822102C2

HITCH ASSY

HITCH ASSEMBLY - right, 595 Spreader

1шт.

3

822311C1

PLATE

- hitch, lower, 595 spreader

1шт.

4

822107C1

PLATE

- hitch, clevis, 595 spreader

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch, 595 spreader

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 595 spreader 5/8"

8шт.

425-1010

NUT,5/8"-11, G5

595 spreader 5/8"-11, G5

8шт.

6

822108C1

SUPPORT

- hitch, left, All Spreaders

1шт.

7

822109C1

SUPPORT

- hitch, right, All Spreaders

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, All spreaders

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , All spreaders 1/2"

6шт.

8

813039C1

PIN

- hitch, All Spreaders

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2", All spreaders

1шт.

9

821785C91

JACK

ASSEMBLY - hitch, All Spreaders

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, All spreaders

4шт.

492-11038

LOCK WASHER,3/8"

all spreaders 3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

All spreaders 3/8"-16, G5

4шт.
