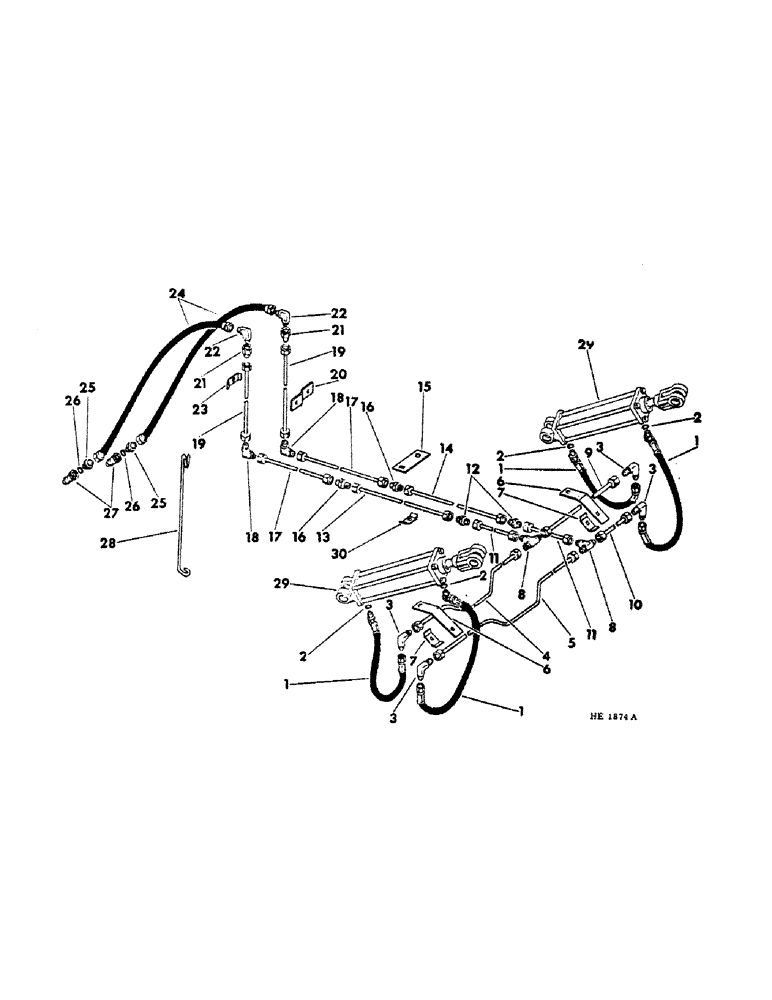

Запчасти Case IH 580 (B-60) - HYDRAULIC ENDGATE, HYDRAULIC LINES, ENDGATE BUILT 1976 AND SINCE Invalid section

1

821102C1

HOSE

27 in hyd cylinder, for use on machine equipped with 820998C91 or 821387C91 cylinder

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

3

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 hyd 37 deg flared tube 90 deg

4шт.

4

820983C1

TUBE,1" OD, 50.3, 4" Length

hydraulic rear LH raise

1шт.

5

820989C1

TUBE,1" OD, 47.3, 4" Length

hydraulic rear LH lower

1шт.

6

820035C1

SUPPORT

left & right hyd tube

2шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8-16 x 1-1/4 no. 3 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

820036C1

SUPPORT

dual tube clamp

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

9402982

TEE,3/4"-16, 37 Degree

1/2 to 3/4 deg flared tube

2шт.

9

635802R11

TUBE,16.7" Length

hydraulic rear RH raise

1шт.

10

820985C1

TUBE,0.5" OD, 18.5" Length

hydraulic rear RH lower

1шт.

11

677487R11

TUBE,1" OD, 15.5" Length

hyd rear extension, 580 only

2шт.

12

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 hyd 37 deg flared, 580 only

2шт.

13

820987C1

TUBE

hydraulic rear centre raise

1шт.

14

820988C1

TUBE

hydraulic rear centre lower

1шт.

15

820037C1

BAR, rear centre tube support

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

16

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 hyd 37 deg flared

2шт.

17

820987C1

TUBE

hydraulic front centre

2шт.

18

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 hyd 37 deg flared tube 90 deg

2шт.

19

637301R11

PIPE,0.5" OD, 29.7" Length

TUBE, hydraulic front upper

2шт.

20

820038C1

SUPPORT

front upper tube

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21

561989R1

CONNECTOR, ELEC

ADAPTOR, 3/4-16 hyd 37deg flared tube to 3/4-16 str thread

2шт.

22

9402866

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

7/8-14 hyd 37 deg flared tube to 3/4-16 str thread 90 deg

2шт.

23

820036C1

SUPPORT

dual tube clamp

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

560193R92

HOSE

85 in tractor to spreader, recommended hydrauilc parts

2шт.

25

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 hyd short swivel, recommended hydraulic parts

2шт.

26

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

connector, recommended hydraulic parts

2шт.

27

395149R1

QUICK MALE COUPLING

COUPLER, hose male, not for 66 series tractor

2шт.

27

544787R91

COUPLING, BREAK AWAY

COUPLER, hose male, for 66 series tractor, recommended hydraulic parts

2шт.

28

651793R2

SUPPORT

flexible hose

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

477589R1

WASHER

.406 x 1.500 x .105

1шт.

29

820998C91

CYLINDER

ASSY, 2 x 8 da hydraulic, for service order 1-821387C91 cylinder 2-811018C1 pin and 2-480523R1 pin

2шт.

29

821387C91

CYLINDER

ASSY, 2 x 8 da hydraulic, for component parts refer to end gate hydraulic cylinder

2шт.

30

820036C1

SUPPORT

dual tube clamp

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
