Запчасти Case IH 580 (B-50) - BUNK FEED EXTENSION, CONVEYOR CHAIN (00) - COMPLETE MACHINE

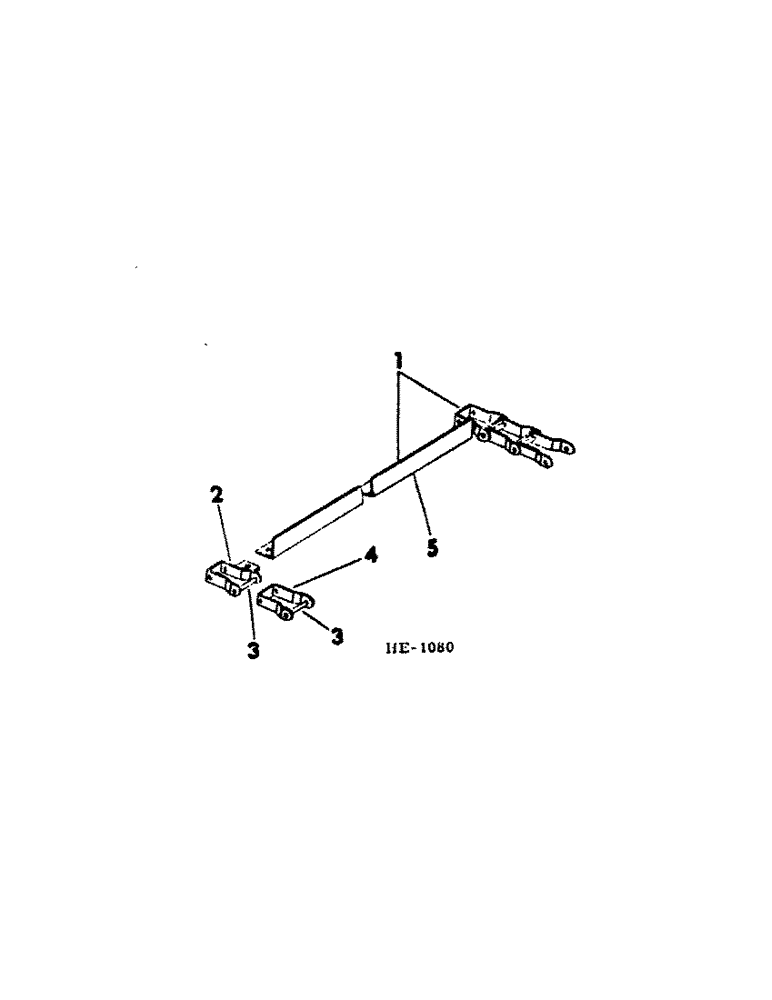

Схема запчастей Case IH 580 - (B-50) - BUNK FEED EXTENSION, CONVEYOR CHAIN (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

596508R91

CHAIN ASSY, extension conveyor, includes parts listed below

1шт.

2

594960R11

LINK

ASSY, chain attaching, includes 1-594961R1, pin and 1-103372, pin

1шт.

106900

RIVET,Truss Hd, 1/4" x 3/4"

20шт.

3

594961R1

PIN

link coupler

40шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

140шт.

4

594962R11

LINK

ASSY, chain replacement, includes 1-594961R1, pin and 1-103372, pin

1шт.

5

594959R91

ANGLE

CROSSMEMBER ASSY, conveyor, includes 2-594960R1, link and 2-106900, rivet

1шт.

106900

RIVET,Truss Hd, 1/4" x 3/4"

10шт.

Выбрано товаров: 8
