Запчасти Case IH 580 (B-50[A]) - BUNK FEED EXTENSION, SUPPORT (00) - COMPLETE MACHINE

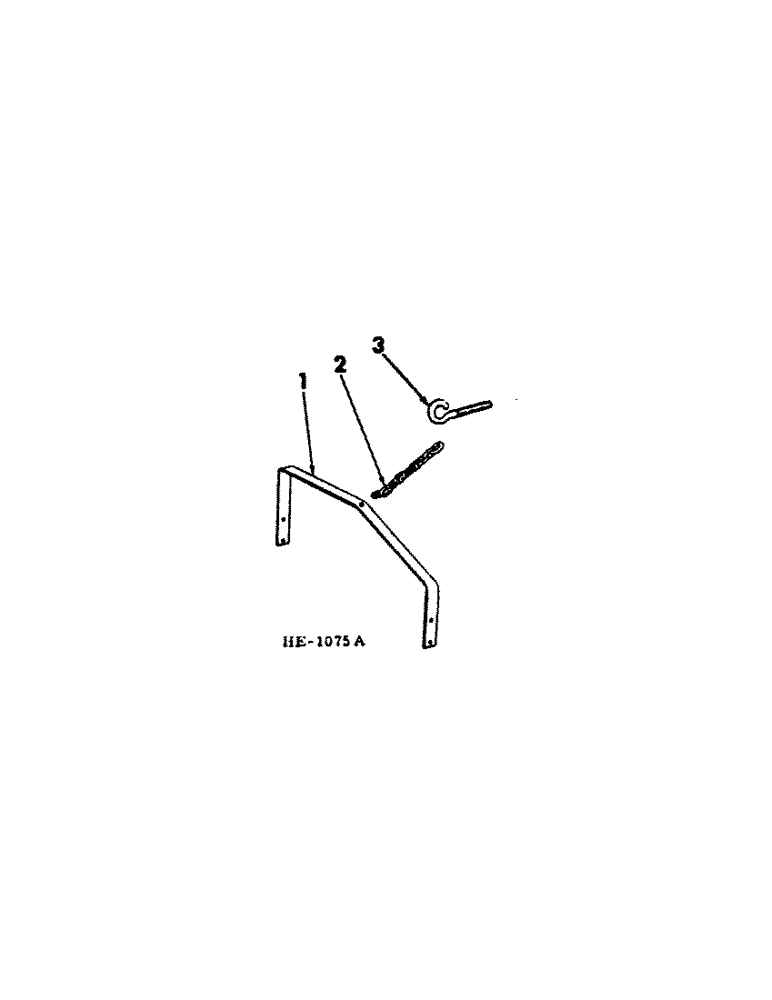

Схема запчастей Case IH 580 - (B-50[A]) - BUNK FEED EXTENSION, SUPPORT (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

596502R1

SUPPORT, extension lifting

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

596503R91

CHAIN (AG)

CHAIN ASSY, extension lift

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 1 crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

S2023

BOLT

lifting eye

1шт.

178372R1

WASHER

.406 x 1.250 x .054

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 12
