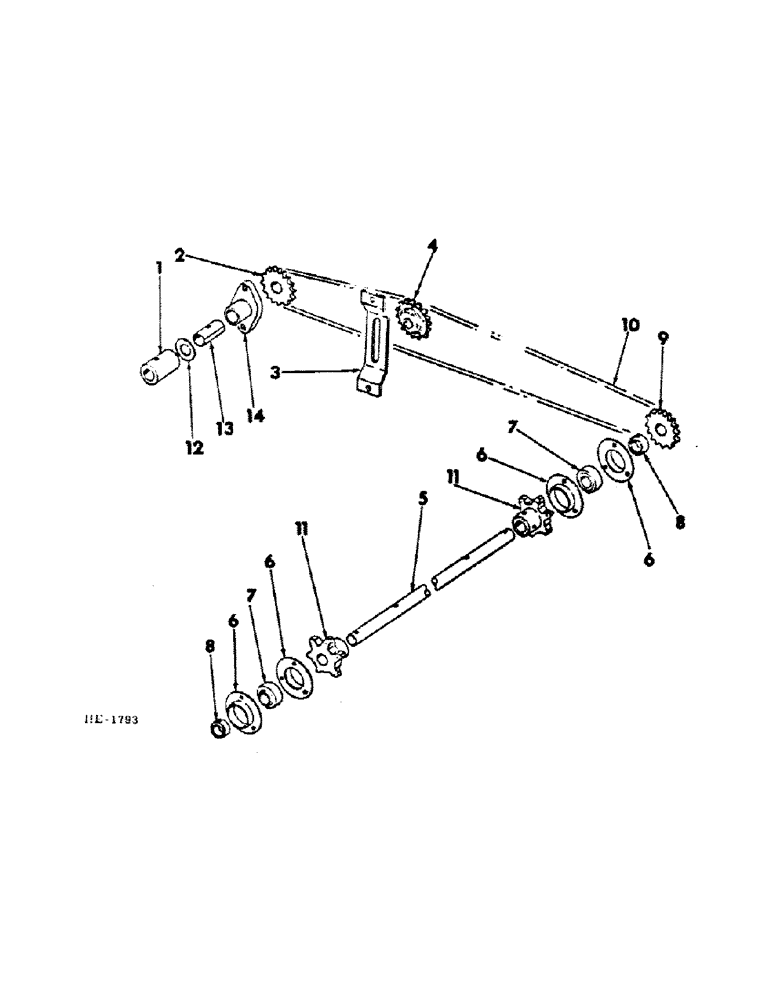

Запчасти Case IH 580 (B-49) - BUNK FEED EXTENSION, DRIVE (00) - COMPLETE MACHINE

1

594997R1

SPACER

BUSHING, CONV drive shaft spacer

2шт.

19424R1

PIN,3/8" x 1 1/2", Coiled

2шт.

2

451123R1

SPROCKET, 16T extension drive

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

591715R1

WASHER

1.031 x 1.500 x .054, use as required

4шт.

3

596505R1

BRACE, chain tightener

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

631905R91

SPROCKET

17T drive chain tightener

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

.656 x 1.250 x .105

1шт.

5

596507R1

ROD

SHAFT, extension conveyor

1шт.

6

462360R1

FLANGED BEARING

RETAINER, bearing flangette

4шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

7

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, conveyor shaft

2шт.

8

455102R21

COLLAR

ASSY, bearing, includes 1-102569, screw

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 cup pt hdls, hex soc set

2шт.

9

451123R1

SPROCKET, 16T driven

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

10

CHAIN ASSY, extension drive use 131 links of 5/8 pitch roller chain from A 10 ft roll 1791-D and add 1, connecting link 131OD

1шт.

11

594964R1

SPROCKET ASSY.

SPROCKET, 6T conveyor drive

2шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

2шт.

12

609836R1

WASHER

1.031 x 1.750 x .056

4шт.

13

594973R1

BUSHING, bearing

2шт.

14

594972R11

BEARING, conveyor drive, includes 1-594973R1, bushing

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 deg lub

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
