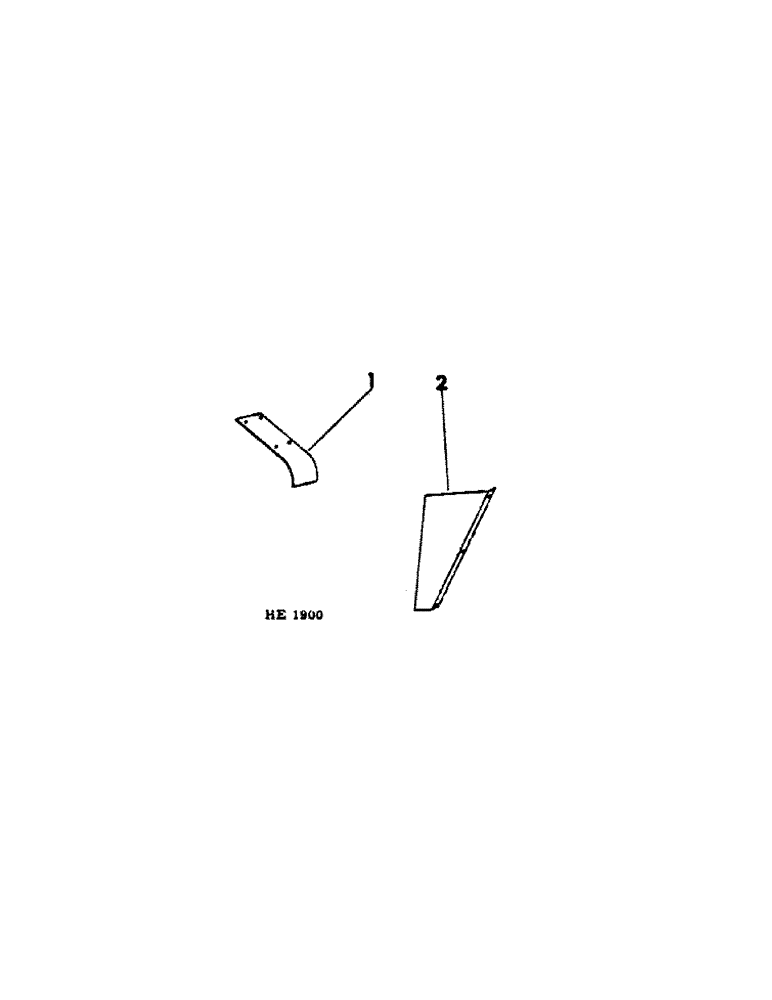

Запчасти Case IH 580 (B-47[A]) - BUNK FEED, SHIELD (00) - COMPLETE MACHINE

1

820064C1

SHIELD

sprdr box bottom centre

1шт.

141662

NAIL, #12 x 3/4 barbed roofing

4шт.

141664

ELBOW,25.4mm OD x 12.7mm L

NAIL, #12 x 7/8 barbed roofing

4шт.

141678

SET OF BELTS,0.75" W x 39.90" L

NAIL, #11 x 3/4 barbed roofing, bright

4шт.

141679

NAUL, #1 x 3/4 barbed roofing, coated

4шт.

2

820082C1

SHIELD

rear side

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 x 5/8 hex hd

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
