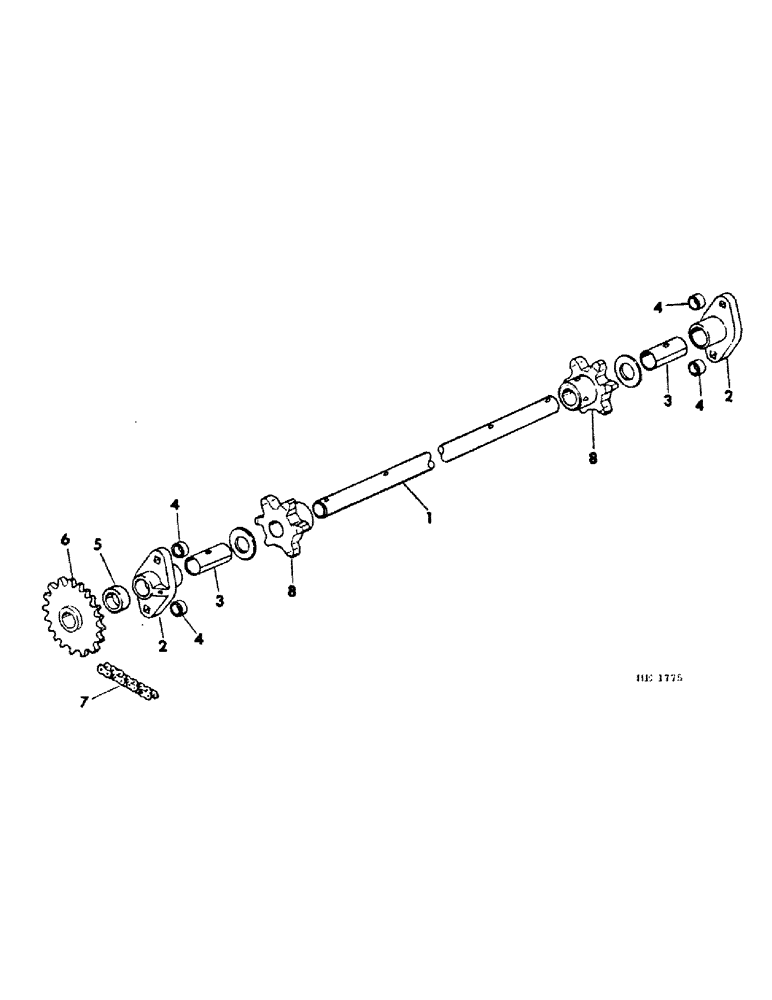

Запчасти Case IH 580 (B-45) - BUNK FEED CONVEYOR SHAFT (00) - COMPLETE MACHINE

1

820072C1

SHAFT

conveyor drive

1шт.

591715R1

WASHER

1.031 x 1.500 x .056

1шт.

2

594972R11

BEARING ASSY, conveyor drive, includes 1-594973R1, bushing

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 deg lub

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

594973R1

BUSHING, bearing

2шт.

4

594974R1

SPACER

drive shaft bearing

4шт.

5

455750R1

SPACER, drive shaft bearing

1шт.

6

820073C1

SPROCKET ASSY.

SPROCKET ASSY, 28T conveyor drive

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

7

CHAIN ASSY, conveyor drive, use 47 links of 5/8 inch pitch roller chain from A 10 foot roll 1791D and add 1-131OD, connecting link and 1-1315D, offset link

1шт.

8

594964R1

SPROCKET ASSY.

SPROCKET, 6T conveyor idler

2шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

2шт.
